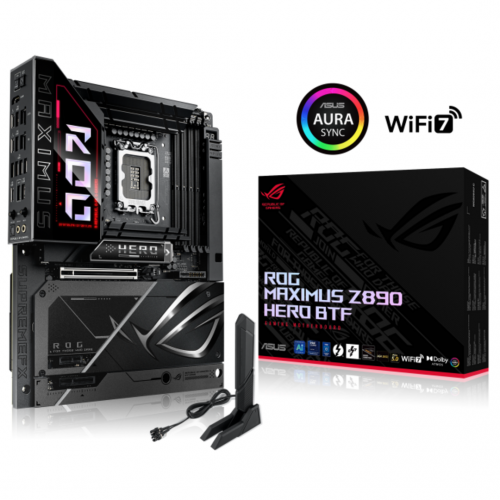

ASUS ROG MAXIMUS Z890 HERO BTF (LGA1851, Z890, DDR5, USB3.2 GEN2X2 TYPE-C, SATA3)

MODEL

ROG MAXIMUS Z890 HERO BTF

CPU

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

CHIPSET

Intel® Z890 Chipset

MEMORY

4 x DIMM slots, max. 256GB, DDR5

Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

Supports DIMM Flex

NitroPath DRAM Technology

DIMM FIT

ASUS Enhanced Memory Profile III (AEMP III)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

GRAPHICS

1 x HDMI™ port**

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates

** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.

*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.

**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.

***** VGA resolution support depends on processors' or graphic cards' resolution.

******While installing the operating system, please ensure that your monitor is connected to the

EXPANSION SLOTS

Intel® Core™ Ultra Processors (Series 2)*

1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**

Intel® Z890 Chipset

1 x PCIe 4.0 x4 slot

1 x PCIe 4.0 x1 slot

STORAGE

Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2) *

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® Z890 Chipset

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot

** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.

ETHERNET

1 x Intel® 2.5Gb Ethernet

1 x Realtek 5Gb Ethernet

ASUS LANGuard

WIRELESS & BLUETOOTH

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 11 ports)

2 x Thunderbolt™ 4 ports (2 x USB Type-C®)

5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)

4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 10 ports)

1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**

1 x USB 10Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A

** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

AUDIO

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel"

Audio Features

- SupremeFX Shielding Technology

- ESS® ES9219 QUAD DAC

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

BACK PANEL I/O PORTS

2 x Thunderbolt™ 4 USB Type-C® ports

5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)

4 x USB 5Gbps ports (4 x Type-A)

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

INTERNAL I/O CONNECTORS

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

1 x Graphics card high power slot

1 x 12V-2X6 Auxiliary power connector

Storage Related

6 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® )

1 x USB 10Gps connector (supports USB Type-C® )

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Alteration PCIe mode switch

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header*

* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.

SPECIAL FEATURES

Extreme OC Kit

- FlexKey button

- Start button

Extreme Engine Digi+

- 10K Black metallic capacitors

- MicroFine alloy choke

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Code

- Q-Connector

- Q-Dashboard

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- Metal backplate

- VRM heatsink design

ASUS EZ DIY

- Backplate

- BIOS FlashBack™ button

- Clear CMOS button

- CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen 2 header(s)

ROG M.2 PowerBoost

SOFTWARE FEATURES

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

- Polymo Lighting II

- Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- Power Saving

- Hwinfo

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

Thunderbolt™ Share

TurboV Core

Adobe Creative Cloud (Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

NPU Boost

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

MANAGEABILITY

WOL by PME

ACCESSORIES

Cables

1 x ARGB RGB extension cable

4 x SATA 6Gb/s cables

Additional Cooling Kit

1 x DDR5 fan holder

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Q-connector

3 x M.2 Q-Slide packages

1 x ROG stickers

6 x M.2 rubber packages

1 x ROG thank you card

1 x ROG Bottle Opener

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x Quick start guide

OPERATING SYSTEM

Windows 11 (22H2 & later)

FORM FACTOR

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
