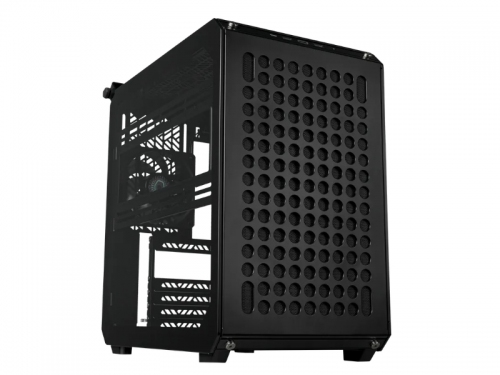

COOLER MASTER QUBE 500 BLACK (Q500-KGNN-S00)

Radiator Support - Bottom

120mm

Radiator Support - Rear

120mm

Dust Filters

Top

Handle

QUBE 500 Flatpack: Black x 1

Gem Mini

QUBE 500 Flatpack: Black x 1

Fan Support - Left side

2x 120/140mm

Radiator Support - Left side

120mm

Dust Filters

Front

Warranty

2 years

Radiator Support - Bottom

140mm

Size

Mid Tower

Exterior Color

Black

Materials - Exterior

Steel

Materials - Exterior

Plastic

Exterior Color

White

Power Supply Support

ATX

Radiator Support - Bottom

240mm

Dust Filters

Bottom

Radiator Support - Left side

140mm

Gem Mini

QUBE 500 Flatpack White: Grey x 1

Handle

QUBE 500 Flatpack White: Grey x 1

Radiator Support - Left side

240mm

3.5" Drive Bays

4

Fan Support - Rear

1x 120mm

Radiator Support - Top

280mm

Dust Filters

Right side

Materials - Exterior

Tempered Glass

Radiator Support - Top

240mm

Radiator Support - Left side

280mm

I/O Panel - USB Ports

2x USB 3.2 Gen 1 Type A

I/O Panel - Audio In / Out

1x 3.5mm Combo

I/O Panel - USB Ports

1x USB 3.2 Gen 2 x 2 Type C

Fan Support - Bottom

2x 120/140mm

Fan Support - Top

2x 120/140mm

Materials - Left Side Panel

Grey TG + Steel

Radiator Support - Front

140mm

Expansion Slots

7

Radiator Support - Top

140mm

Motherboard Support

ATX

Motherboard Support

Micro ATX

Radiator Support - Top

120mm

Radiator Support - Front

120mm

2.5" Drive Bays

3

Radiator Support - Bottom

280mm

Motherboard Support

ITX

Series

QUBE Series

Cable Routing - Behind Motherboard Tray

29-32mm

Motherboard Support

E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)

Power Supply Support

SFX

Power Supply Support

SFX-L

Radiator Support - Front

(240/280mm w/ PSU in bottom)

Volume

33.44L (excl. Protrusions)

Pre-installed Fans - Rear

QUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM

Radiator Support - Top

(280mm can be used within 53mm thickness)

Pre-installed Fans - Rear

QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM

Clearance - PSU

173mm to first GPU slot, 216 maximum space (w/o cable management space)

Clearance - PSU

332mm space mounted in bottom (w/o cable management space)

Clearance - CPU Cooler

164mm-172mm (Remove the water cooling bracket)

Fan Support - Front

1x 120/140mm (x2 if PSU is mounted in bottom)

Clearance - GFX

365mm

Dimensions (L x W x H)

406 x 231 x 415mm (Incl. Protrusions)

Dimensions (L x W x H)

380 x 231 x 381mm (excl. Protrusions)

Model Number

QUBE 500 Flatpack: Q500-KGNN-S00

Model Number

QUBE 500 Flatpack White: Q500-WGNN-S00
