AEROCOOL MIRAGE L240 240MM ARGB LIQUID COOLER
Rp. 1.071.000
- SKU: ARCLRWCPU003X
- CATEGORY: Cooler processor
Tersedia Di marketplace

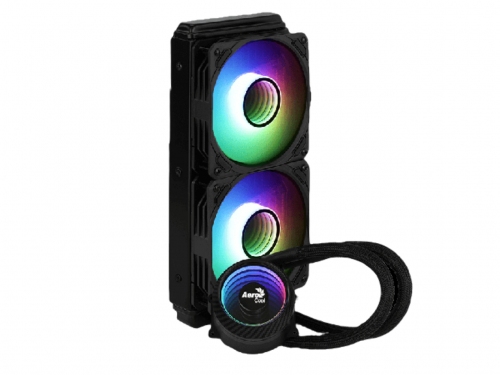

Aerocool Mirage L240 240MM ARGB Liquid Cooler
| Model | Mirage L240 | |
| Block Material | Copper | |
| Radiator Material | Aluminum | |
| Radiator Dimension | 274mm x 120mm x 27mm | |
| TDP | 400W | |
| Pump | ||
| Speed | 2300 rpm | |
| Rated Voltage | 12V | |
| Power Consumption | 2.64 Watts | |
| Noise | 20.2dBA | |
| Bearing Type | Stainless Steel Bearing | |
| Fan | ||
| Speed | 600-1800 rpm | |
| Connector | PWM 4-Pin | |
| Dimension | 120mm x 120mm x 25mm | |
| Started Voltage | 7V | |
| Rated Voltage | 12V | |
| Rated Current | MAX 0.28 A (One Fan) | |
| Power Consumption | MAX 3.36 Watts (One Fan) | |
| Air Pressure | MAX 1.62 mm-H2O | |
| Air Flow | MAX 72.2 CFM | |
| Noise | MAX 26.8 dBA | |
| Bearing Type | Hydraulic Bearing | |
| MTBF | 60000 hrs. | |
| Socket | LGA2066 / 2011 / 1200 / 115X / 775 | |
| AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 | ||
| SATA 6Gb/s | 8 x SATA 6Gb/s | |
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | ||
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | ||
| 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | ||
| * Supports Intel Volume Management Device (VMD) | ||
| * Supports NVMe SSD as boot disks | ||
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Onboard Audio | ||
| Audio Chipset | Realtek ALC897 | |
| Audio Channels | 7.1 Channels | |
| Onboard LAN | ||
| LAN Chipset | Dragon RTL8125BG | |
| Max LAN Speed | 2.5Gbps | |
| Rear Panel Ports | ||
| Back I/O Ports | 2 x Antenna Mounting Points | |
| 1 x PS/2 Mouse/Keyboard Port | ||
| 1 x HDMI Port | ||
| 1 x DisplayPort 1.4 | ||
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) | ||
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) | ||
| 2 x USB 3.2 Gen1 Ports | ||
| 4 x USB 2.0 Ports | ||
| 1 x RJ-45 LAN Port | ||
| HD Audio Jacks: Line in / Front Speaker / Microphone | ||
| Internal I/O Connectors | ||
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | ||
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | ||
| Other Connectors | 1 x eDP Signal Connector | |
| 1 x SPI TPM Header | ||
| 1 x Power LED and Speaker Header | ||
| 1 x RGB LED Header* | ||
| 3 x Addressable LED Headers** | ||
| 1 x CPU Fan Connector (4-pin)*** | ||
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | ||
| 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | ||
| 1 x Front Panel Audio Connector | ||
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | ||
| * Supports in total up to 12V/3A, 36W LED Strip | ||
| ** Support in total up to 5V/3A, 15W LED Strip | ||
| *** CPU_FAN1 supports the fan power up to 1A (12W). | ||
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | ||
| ***** CHA_FAN1~5/WP support the fan power up to 2A (24W). | ||
| ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. | ||
| Physical Spec | ||
| Form Factor | ATX | |
| Dimensions (W x L) | 12.0" x 9.6" | |
| Power Pin | 1 x 24 pin ATX Power Connector | |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | ||
| Windows Compatibility | ||
| Windows 11 | Supported |
