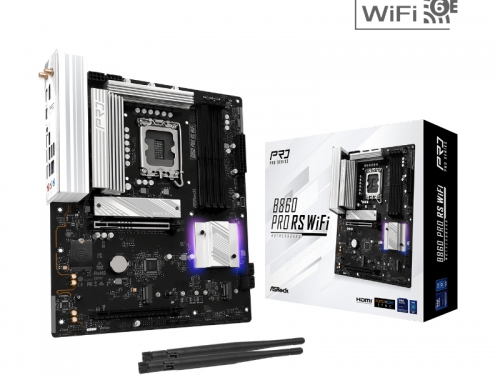

ASROCK B860 PRO RS WIFI (LGA1851, B860, DDR5, USB3.2 GEN2 TYPE-C, SATA3)

Unique Feature

Superb Productivity

- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5

Rock-Solid Durability

- 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- Pre-Installed I/O Shield

Ultrafast Connectivity

- 2.5G LAN, 802.11axe Wi-Fi 6E Module

EZ Update

- BIOS Flashback Button
- ASRock Auto Driver Installer

EZ Troubleshooter

- ASRock Post Status Checker

CPU

Supported Processors

- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)

Hybrid Technology

- Supports Intel® Hybrid Technology

Turbo Boost Technologies

- Supports Intel® Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT)

AI Acceleration

- Integrated NPU for dedicated AI acceleration

Chipset

- Intel® B860

Memory

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Max. capacity: 256GB

Graphics

- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1, 1 x DisplayPort 1.4

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN

- 2.5 Gigabit LAN (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software

Wireless LAN

- 802.11axe Wi-Fi 6E Module
- Bluetooth 5.3
- Dual-Band 2x2 with extended 6GHz band

Slots

PCIe Slots

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode

M.2 Socket

- 1 x M.2 Socket (Key E), supports WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2

Storage

M.2 Storage

- 1 x Blazing M.2 Socket (M2_1, Key M), PCIe Gen5x4 (128 Gb/s)
- 2 x Hyper M.2 Sockets PCIe Gen4

SATA Storage

- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices

USB Ports

USB Ports

- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear)

Connectors

RGB & LED Headers

- 1 x RGB LED Header
- 3 x Addressable LED Headers

Fan Connectors

- 2 x CPU Fan Connectors (4-pin)
- 4 x Chassis Fan Connectors (4-pin)
- 1 x AIO Pump Fan Connector

Power Connectors

- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors

Rear Panel I/O

Ports

- 2 x Antenna Ports
- 1 x HDMI, 1 x DisplayPort 1.4
- 6 x USB 3.2 Gen1, 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks

Software & UEFI

Software

- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC

UEFI

- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI

Accessories

- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Operating System

- Microsoft Windows® 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready
