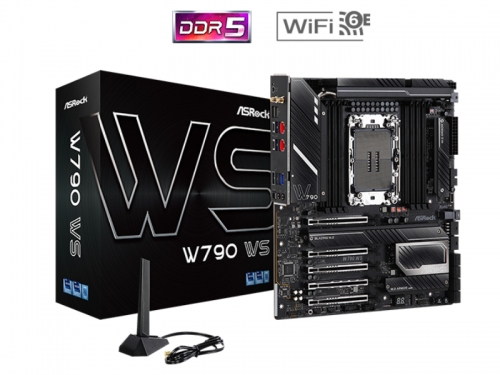

ASROCK W790 WS (LGA4677, W790, DDR5, USB3.2 TYPE-C, SATA3)
Rp. 17.150.000
- SKU: ASRMB4677001X
- CATEGORY: Motherboard intel lga 4677
Tersedia Di marketplace
ASRock W790 WS (LGA4677, W790, DDR5, USB3.2 Type-C, SATA3)
| Model | |
| Brand | ASRock |
| Model | W790 WS |
| Supported CPU | |
| CPU Socket Type | LGA 4677 |
| CPU Type | Supports 4th Gen Intel Xeon W-3400 and W-2400 Processors (LGA4677) |
| Supported CPU Technologies | Supports Intel Optane Persistent Memory |
| Supports Intel Boot Guard | |
| Supports Intel Trusted Execution Technology (Intel TXT) | |
| Supports Intel Turbo Boost Technology | |
| Supports Intel Virtualization Technology (Intel VT) | |
| Supports Intel Hyper-Threading Technology (Intel HT Technology) | |
| Supports Intel Data Streaming Accelerator (Intel DSA) | |
| Supports ASRock Hyper BCLK Engine | |
| Chipsets | |
| Chipset | Intel W790 |
| Memory | |
| Number of Memory Slots | 8x288pin (DDR5) |
| Memory Standard | Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4) up to 6800+(OC)* |
| 1DPC Up to 6800+ MHz (OC), 4800 MHz Natively for Xeon W9, Xeon W7 and Xeon W5. | |
| 2DPC Up to 6000+ MHz (OC), 4400 MHz Natively for Xeon W9, Xeon W7 and Xeon W5. | |
| Supports 4400 MHz Natively for Xeon W3, W5-3423 and W5-3433. | |
| Overclocking is not supported. | |
| * Actual support may vary by CPU | |
| * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 2TB |
| Channel Supported | Quad Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)* |
| * Supports NVMe SSD as boot disks | |
| - 15µ Gold Contact in VGA PCIe Slots | |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* |
| * Supports NVMe SSD as boot disks | |
| Other Slots | 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode |
| Storage Devices | |
| SATA 6Gb/s | 8 x SATA3 6.0 Gb/s Connectors |
| M.2 | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode* |
| 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| * Supports Intel Volume Management Device (VMD) | |
| * Supports NVMe SSD as boot disks | |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* | |
| * Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| Onboard Audio | |
| Audio Chipset | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) |
| - Support Wake-On-LAN | |
| - Support PXE | |
| 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel I225LM) | |
| - Support Wake-On-LAN | |
| - Support PXE | |
| - Supports Intel vPro Technology | |
| Max LAN Speed | 2 x 10Gbps + 2.5Gbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| - Supports IEEE 802.11a/b/g/n/ac/ax | |
| - Supports Dual-Band 2x2 with extended 6GHz band* support | |
| * Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. | |
| The availability will depend on the different regulation status of each country and region. | |
| It will be activated (for supported countries) through Windows Update and software updates once available. | |
| * A 6GHz compatible router is required for 6E functionality. | |
| - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology | |
| - Supports Bluetooth 5.3 + High speed class II | |
| - Supports MU-MIMO | |
| Bluetooth | Yes |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Ports |
| 1 x Optical SPDIF Out Port | |
| 2 x USB4 Thunderbolt 4 Type-C Ports* | |
| 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
| 4 x USB 3.2 Gen1 Ports | |
| 3 x RJ-45 LAN Ports | |
| 1 x BIOS Flashback Button | |
| 1 x Line Out Jack (Gold Audio Jack) | |
| 1 x Microphone Input Jack (Gold Audio Jack) | |
| * Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| Other Connectors | 1 x Virtual RAID On CPU Header |
| 1 x SPI TPM Header | |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin)* | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** | |
| 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| 1 x Front Panel Audio Connector | |
| 1 x Clear CMOS Button | |
| 1 x Dr. Debug with LED | |
| 1 x Power Button with LED | |
| 1 x Reset Button with LED | |
| * CPU_FAN1 supports the fan power up to 1A (12W). | |
| ** CPU_FAN2/WP_3A supports the fan power up to 3A (36W). | |
| *** CHA_FAN1~3/WP support the fan power up to 2A (24W). | |
| *** CPU_FAN2/WP_3A and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Physical Spec | |
| Form Factor | Extended ATX |
| Dimensions (W x L) | 12.0" x 10.9" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard) | |
| 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)**** | |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)***** | |
| **** It is optional to connect an ATX 12V 6-pin cable to ATX12V3, which provides more power for overclocking. | |
| ***** Use either GTX_12V1 or GTX_12V2 when you install one or two PCIe card(s). Use both connectors when you install more than two PCIe cards. Otherwise, the system may not boot up properly. | |
| Windows Compatibility | |
| Windows 11 | Supported |
