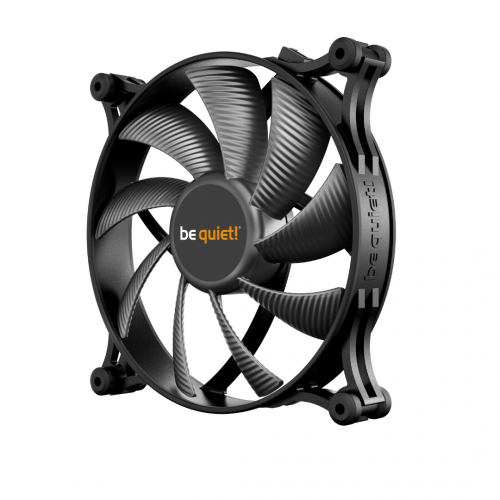

BE QUIET! SHADOW WINGS 2 - 140MM PWM - WORLD CLASS QUIET 14.9 DB(A)

General data

Model

Shadow Wings 2 140mm

Dimensions (mm)

140

Color option

Black

Lighting

-

Fan speed at 100% PWM / 12V (rpm)

900

Noise level at 100% PWM / 12V (dB(A))

14.7

Airflow at 100% PWM / 12V (CFM / m3/h)

49.8 / 85

Air Pressure at 100% PWM / 12V (mm H2O)

0.58

Mechanical specifications

Dimensions (L x W x H), (mm)

140 x 25 x 140

Weight incl. fixed cables (g)

175

Bearing technology

Rifle

Motor technology

4-pole fan motor

Push pin fixing

✓

Screw fixing

-

Cables / Connectors

Daisy-chain compatible

-

Lighting connector

-

Connector

3-pin

Cable length (mm)

500

Cable sleeve

-

Performance / Noise

Airflow at 100% PWM / 12V (CFM / m3/h)

49.8 / 85

Air Pressure at 100% PWM / 12V (mm H2O)

0.58

Noise level at 100% PWM / 12V (dB(A))

14.7

Lifespan (h / 25°C)

80000

Zero RPM mode

-

Electrical specifications

Rated Voltage DC (V)

12

Operating Voltage DC (V)

6 - 12

Input current (A)

0.1

Safety current (A)

0.3

Input power (W)

3.6

Rated Current LED (A)

-

Accessories

3-pin to 4-pin 12V-connector

-

12V to 7V adapter

-

12V to 5V adapter

-

Screws

-

Push pins

4

hard plastic washer

4

Others

-

Safety certification

Approvals

CE / UL / TÜV
