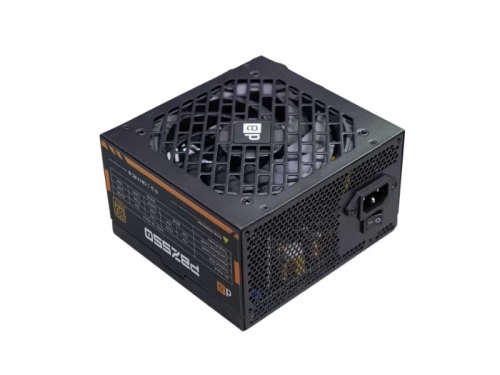

DIGITAL ALLIANCE GAMING PSU PBZ550 550W 80+ BRONZE

SPECIFICATION

AC INPUT

Model

PBZ 550W 80+ Bronze

Form Factor

ATX

Dimensions

140(L) x 150(W) x 85(H)mm

Voltage Range

90 – 260V

Current

6A

Frequency

47 – 63Hz

Color

Black

80 PLUS Certification

Bronze

DC OUTPUT

Red

+5V (10A)

Orange

+3.3V (10A)

Yellow

+12V (45A)

Blue

-12V (0.3A)

Purple

+5Vsb (2.0A)

POWER CONNECTOR

Main Power (24 pin)

1

ATX 12V (4+4 pin)

1

PCI-E (6+2 pin)

2

Sata (4 pin)

4

Safety Features

OVP (Over Voltage Protection)

SCP (Short Circuit Protection)

UVP (Under Voltage Protection)

OPP (Over Power Protection)
