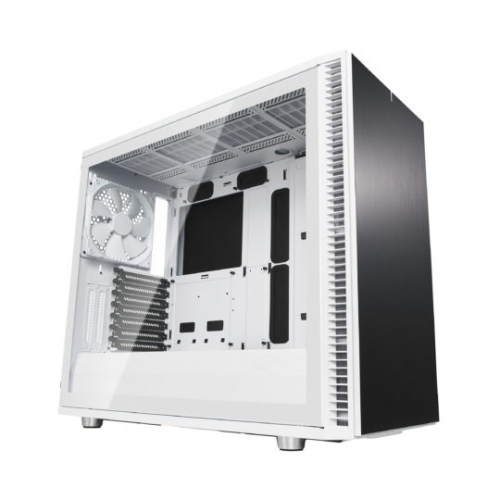

Brand | Fractal Design |
---|---|
Series | Define S2 |
Model | FD-CA-DEF-S2-WT-TGC |
Type | ATX Mid Tower |
---|---|
Color | White |
Case Material | - |
With Power Supply | No |
Power Supply Mounted | - |
Motherboard Compatibility | Micro ATX / ATX / Mini ITX / E-ATX |
Side Panel Window | Yes |
LED | - |
Dust Filters | Bottom fan + PSU, Front fans, Top panel |
3.5"/2.5" Universal Drive Bracket | 3 |
---|---|
Dedicated 2.5" Drive Bracket | 2 |
Expansion Slots | 7 + 2 Vertical |
Front Ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O |
---|
Fan Options | Total fan mounts: 9 Front: 3 x 120/140 mm (2x dynamic x2 gp-14 included) Top: 3 x 120/140 mm Rear: 1 x 120/140 mm (1 x Aspect 14 RGB included) Bottom: 2 x 120/140 mm |
---|---|
Radiator Options | Front: 120/240/360 mm, 140/280 mm Top: 120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height) Rear: 120 mm Bottom: 120/240 mm, 140/280 mm |
Max GPU Length | 440 mm |
---|---|
Max CPU Cooler Height | 185 mm |
Max PSU Length | 300 mm |
Dimensions (H x W x D) | 543 x 233 x 465 mm 535 x 233 x 448 mm w/o feet/protrusions/screws |
