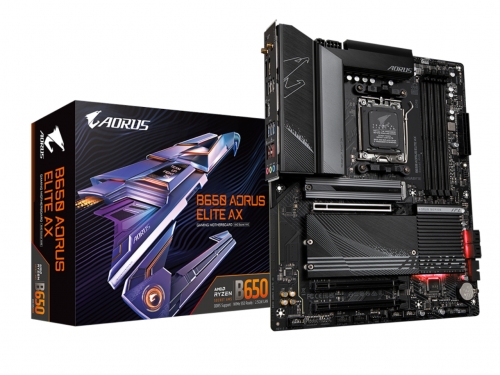

GIGABYTE B650 AORUS ELITE AX (AM5, AMD B650, DDR5, USB3.2 TYPE-C, SATA3)
Rp. 3.915.000
- SKU: GBMBAAM55005
- CATEGORY: Motherboard amd am5
Tersedia Di marketplace
Gigabyte B650 Aorus Elite AX (AM5, AMD B650, DDR5, USB3.2 Type-C, SATA3)
| Model | |
| Brand | GIGABYTE |
| Series | B650 AORUS ELITE AX |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen Series |
| Chipsets | |
| Chipset | AMD B650 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory module |
| Maximum Memory Supported | 128GB (32GB Single DIMM Capacity) |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Expansion Slots | |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| PCI Express 3.0 x16 | 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) | |
| * Actual support may vary by CPU. | |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) | |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Onboard Audio | |
| Audio Chipset | Realtek® Audio CODEC |
| High Definition Audio | |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Bluetooth | Bluetooth 5.2 |
| Rear Panel Ports | |
| Back I/O Ports | 1 x Q-Flash Plus button |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x DisplayPort | |
| 1 x HDMI 2.0 port | |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 5 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Internal I/O Connectors | |
| Other Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 3 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Windows 11 Compatibility | |
| Windows 11 | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit |
