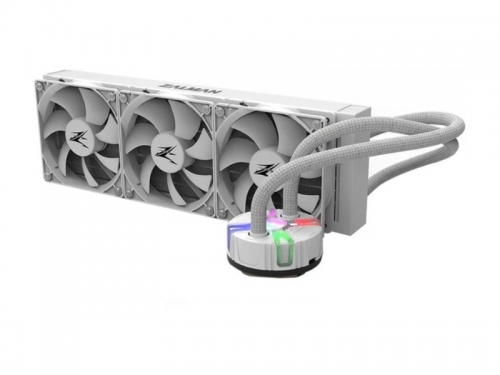

ZALMAN CORELIQUID RESERATOR5 Z36 ARGB - WHITE EDITION

Model

Reserator5 Z36 ARGB (White)

Pump ▼

----------------------------------------

Dimensions

82(L) x 82(W) x 40(H)mm

Materials

PPS, PC, Pure Copper, Pure Aluminum

Speed

1,000~2,500RPM±10%

Bearing Type

Ceramic Bearing

Water Flow

Min. 0.7L/min Max. 0.85L/min

Rated Voltage

12V

Rated Current

0.35A

Power Consumption

4.2W

Radiator ▼

----------------------------------------

Dimensions

120 x 397 x 27(H)mm

Materials

Pure Aluminum

Fan ▼

----------------------------------------

Dimensions

120 X 120 X 25(H)mm

Bearing Type

Hydro Bearing

Speed

700~1,800RPM±10%

Max.Noise Level

28dB(A)±10%

Max. Air Pressure

1.43mmH2O±10%

Life Span

50,000hours

Connector Type

Fan : 4-pin (PWM Control)
LED : 3-pin (Addressable RGB)

Control Method

PWM Control

Rated Voltage

Fan : 12V DC
LED : 5V DC

Rated Current

0.35A

Power Consumption

4.2W

Thermal Compound

ZM-STC8

Socket Compatibility

Intel Socket : LGA 1700 / 1200 / 115X / 2066 / 2011-V3 / 2011
AMD Socket : AM5 / AM4
