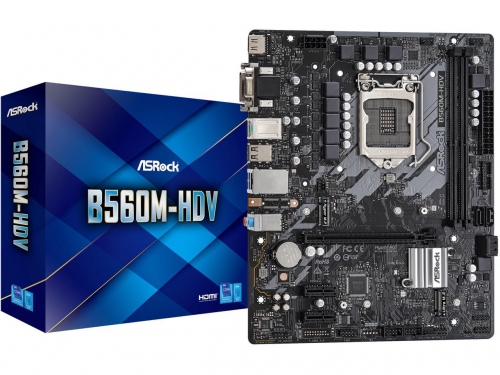

ASROCK B560M-HDV (LGA1200, B560, DDR4, USB3.2, SATA3)
Rp. 0
- SKU: ASRMB1200027X
- CATEGORY: Motherboard intel lga 1200
- Merk: ASROCK
Tersedia Di marketplace
ASRock B560M-HDV (LGA1200, B560, DDR4, USB3.2, SATA3)
Model
| Brand | ASRock |
|---|---|
| Model | B560M-HDV |
Supported CPU
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipsets
| Chipset | Intel B560 |
|---|
Memory
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 2933; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 4.0 x16 | 11th Gen Intel Core Processors: 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel Core Processors: 1 x PCI Express 3.0 x16 Slot* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
Storage Devices
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* * Supports Intel Optane Technology (M2_2) * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
Onboard Audio
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Intel I219V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors
| Other Connectors | 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|---|
Physical Spec
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.8" |
Windows Compatibility
| Windows 11 | Supported |
|---|
