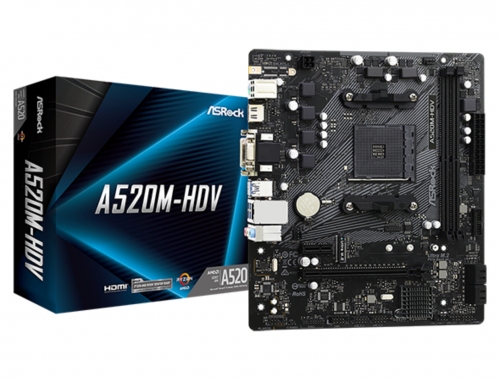

ASROCK A520M-HDV (AM4, A520, DDR4, USB 3.2, SATA3)
Rp. 0
- SKU: ASRMBAAM4027X
- CATEGORY: Motherboard amd am4
- Merk: ASROCK
Tersedia Di marketplace
ASRock A520M-HDV
Model
| Brand | ASRock |
|---|---|
| Series | A520M-HDV |
Supported CPU
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)* * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. |
Chipsets
| Chipset | AMD A520 |
|---|
Memory
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 1 x PCI Express 3.0 x1 Slot |
Storage Devices
| SATA 6Gb/s | 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
|---|---|
| M.2 | 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| SATA RAID | 0/1/10 |
Onboard Video
| Onboard Video Chipset | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* * Actual support may vary by CPU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. * The Max shared memory 16GB requires 32GB system memory installed. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady |
|---|
Onboard Audio
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. * CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector |
Physical Spec
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.0" x 7.9" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector |
