ASROCK B650 PRO RS (AM5, AMD B650, DDR5, USB3.2 TYPE-C, SATA3)
Rp. 3.185.000
- SKU: ASRMBAAM5008X
- CATEGORY: Motherboard amd am5
- Merk: ASROCK
Tersedia Di marketplace

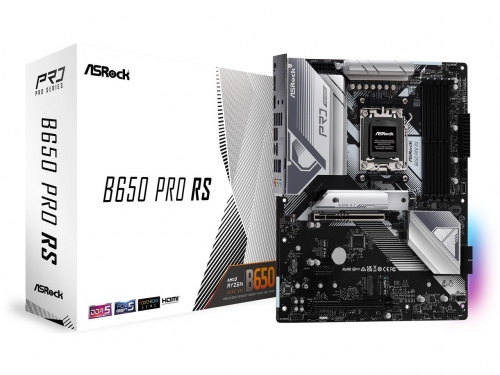

ASRock B650 Pro RS
| Model | |
| Brand | ASRock |
| Series | PRO |
| Model | B650 PRO RS |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen 7000 Series Processors |
| Chipsets | |
| Chipset | AMD B650 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) | |
| Expansion Slots | |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* |
| * Supports NVMe SSD as boot disks | |
| Storage Devices | |
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| M.2 | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
| 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* | |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| SATA RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| * Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Dragon RTL8125BG |
| Max LAN Speed | 2.5Gbps |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Mounting Points |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| 2 x USB 3.2 Gen1 Ports | |
| 6 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x BIOS Flashback Button | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
| Other Connectors | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header* | |
| 3 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use | |
| Physical Spec | |
| Form Factor | ATX |
| Power Pin | 1 x 24 pin ATX Power Connector |
| 1 x 8 pin 12V Power Connector | |
| 1 x 4 pin 12V Power Connector | |
| Windows 11 Compatibility | |
| Windows 11 | Supported |
