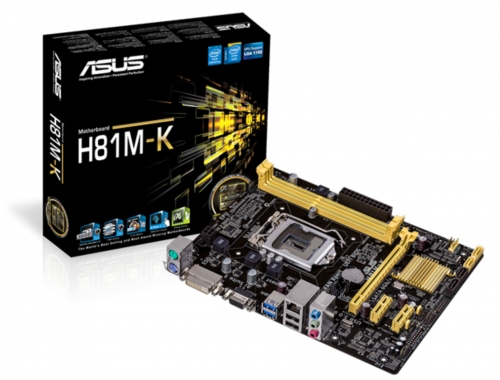

ASUS H81M-K (LGA1150, INTEL H81, DDR3)
- SKU: ASUMB11500005X
- CATEGORY: Motherboard intel lga 1150
- Merk: ASUS
Model
| Brand | ASUS |
|---|---|
| Model | H81M-K |
Supported CPU
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipsets
| Chipset | Intel H81 |
|---|
Onboard Video
| Onboard Video Chipset | Integrated Graphics Processor Multi-VGA output support: DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
|---|
Memory
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333/ 1066 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz. |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 |
Storage Devices
| SATA 3Gb/s | 2 x SATA 3Gb/s port(s), dark brown |
|---|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s port(s), yellow |
Onboard Audio
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels * Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
Onboard LAN
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports
| PS/2 | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) |
|---|---|
| Video Ports | 1 x DVI 1 x D-Sub |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen 1 (blue) |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
Internal I/O Connectors
| Onboard USB | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
Physical Spec
| Form Factor | uATX |
|---|---|
| Dimensions (W x L) | 8.9" x 6.9" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
