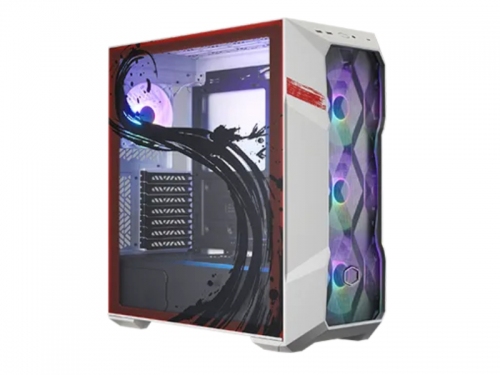

COOLER MASTER MASTERBOX TD500 MESH V2 RYU (TD500V2-WGNN-SRY)

Model Number

TD500V2-WGNN-SRY

Exterior Color

White

Materials - Exterior

Steel, Mesh, Plastic

Materials - Left Side Panel

Tempered Glass

Dimensions (L x W x H)

499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions)

Volume

50L

Motherboard Support

Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7", may impact cable management)

Expansion Slots

7

3.5" Drive Bays

2

2.5" Drive Bays

3

I/O Panel - USB Ports

2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C

I/O Panel - Audio In / Out

1x Audio Jack

I/O Panel - Other

1x ARGB Fan Hub

Pre-installed Fans - Front

3x 120mm CF120 ARGB

Pre-installed Fans - Rear

1x 120mm CF120 ARGB

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm

Fan Support - Rear

1x 120mm

Radiator Support - Top

120 / 140 / 240 / 280 / 360mm (max thickness: 55mm)

Radiator Support - Front

120 / 140 / 240 / 280 / 360mm

Radiator Support - Rear

120mm

Clearance - CPU Cooler

165mm

Clearance - PSU

200mm (recommended up to 170mm)

Clearance - GFX

410mm

Cable Routing - Behind Tray

19mm / 0.74"

Dust Filters

Front, Top, Bottom

Power Supply Support

Bottom Mount, ATX

Warranty

2 years

Size

Mid Tower

Series

MasterBox Series

Back Connector Motherboard Support

No
