GIGABYTE Z790 AERO G (LGA1700, Z790, DDR5, USB3.2 TYPE-C, SATA3)
Rp. 0
- SKU: GBMB1700025
- CATEGORY: Motherboard intel lga 1700
- Merk: Gigabyte
Tersedia Di marketplace

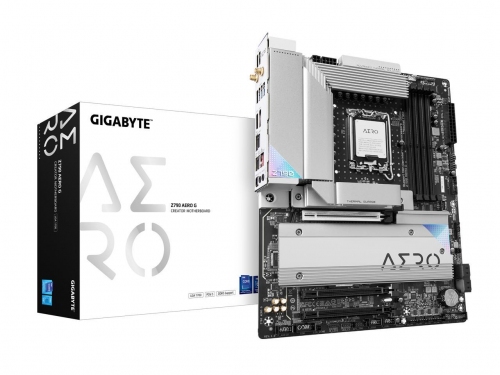

Gigabyte MBI Z790 Aero G
| Model | |
| Brand | GIGABYTE |
| Model | Z790 AERO G |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| CPU Type | Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipsets | |
| Chipset | Intel Z790 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| PCI Express 4.0 x16 | 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) | |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC1220-VB CODEC |
| - The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX211 |
| - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Bluetooth | Bluetooth 5.3 |
| Rear Panel Ports | |
| Back I/O Ports | 2 x USB 2.0/1.1 ports |
| 2 x SMA antenna connectors (2T2R) | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x DisplayPort In port | |
| 1 x HDMI 2.0 port | |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 1 x USB Type-C port, with USB 3.2 Gen 2x2 support | |
| 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 2 x audio jacks | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| Other Connectors | 1 x CPU fan header |
| 1 x water cooling CPU fan header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 5 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x noise detection header | |
| 2 x Thunderbolt add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 2 x temperature sensor headers | |
| 1 x Clear CMOS jumper | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x 4-pin ATX 12V power connector | |
| Windows Compatibility | |
| Windows 11 | Supported |
