Brand
|
Gigabyte
|
|
Model
|

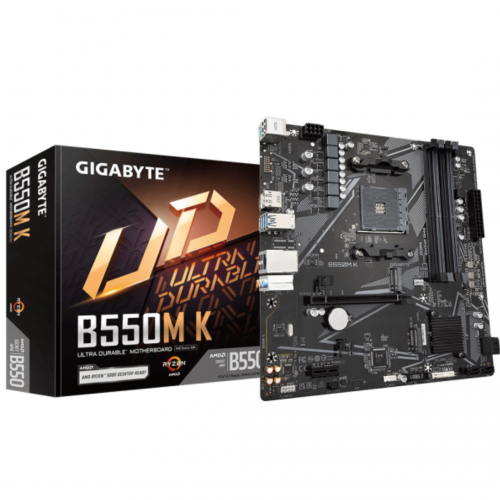

B550M K
|
|
CPU
|
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Silahkan Lihat "CPU Support List" untuk informasi lebih lanjut.)
|
|
Chipset
|
AMD B550
|
|
Operating System
|
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
|
|
Form Factor
|
Micro ATX Form Factor; 24.4cm x 24.4cm
|
|
Memory
|
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Konfigurasi CPU dan memori dapat memengaruhi jenis memori yang didukung, kecepatan data (speed), dan jumlah modul DRAM, lihat “Memory Support List” di situs web GIGABYTE untuk informasi lebih lanjut.)
|
|
Onboard Graphics
|
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Dukungan untuk versi DisplayPort 1.4, HDCP 2.3, dan HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Dukungan untuk versi HDMI 2.1, HDCP 2.3, dan HDR.
- Maximum shared memory of 16 GB
|
|
Audio
|
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* Anda dapat mengubah fungsionalitas jack audio menggunakan perangkat lunak audio. Untuk mengonfigurasi audio 7.1-channel, akses perangkat lunak audio untuk pengaturan audio.
|
|
LAN
|
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
|
Expansion Slots
|
1 x PCI Express x16 slot, integrated in the CPU:
- AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode
* Dukungan yang sebenarnya dapat bervariasi menurut spesifikasi CPU AMD.
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
|
|
Storage Interface
|
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
- Supporting PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
|
|
USB
|
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 port pada panel belakang, 2 port tersedia melalui header USB internal)
|
|
Internal I/O Connectors
|
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, hanya untuk modul GC-TPM2.0_S)
- 1 x Clear CMOS jumper
|
|
Back Panel Connectors
|
- 1 x PS/2 keyboard/mouse port
- 1 x DisplayPort
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
|
|
I/O Controller
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan fail warning
- Fan speed control
* Fungsi kontrol kecepatan kipas didukung akan tergantung pada pendingin yang Anda pasang.
|
|
BIOS
|
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
Unique Features
|
- Support for APP Center
* Aplikasi yang tersedia di APP Center dapat bervariasi menurut model motherboard. Fungsi yang didukung dari setiap aplikasi juga dapat bervariasi, tergantung pada spesifikasi motherboard.
@BIOS
EasyTune
Smart Backup
System Information Viewer
- Support for Q-Flash
|
|
Bundled Software
|
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
|
