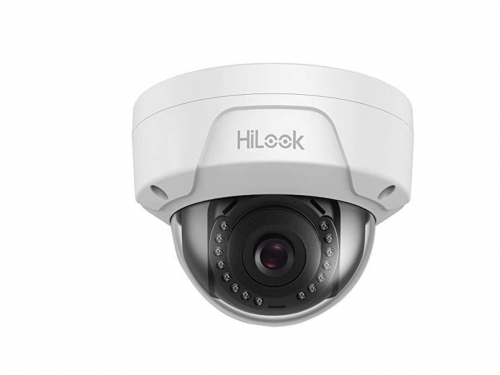

HILOOK IPC-D121H - 2 MP FIXED DOME NETWORK CAMERA

Parameter

Spesifikasi

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

1920 × 1080 (Full HD)

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON); B/W: 0 Lux dengan IR

Shutter Time

1/3 s – 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0°–355°, Tilt: 0°–75°

Lens Type

Fixed focal lens, 2.8 mm / 4 mm optional

Lens FOV

2.8 mm: H 112.1°, V 60.0°, D 132.2°4 mm: H 90.2°, V 48.6°, D 107.6°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

Illuminator Type

IR

IR Range

Up to 30 m

Smart IR

Yes

IR Wavelength

850 nm

Video Compression

Main: H.265/H.264/H.264+/H.265+Sub: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps – 8 Mbps

H.264 Type

Baseline/Main/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Video Stream (Main)

50Hz: 25 fps (1920×1080, 1280×720)60Hz: 30 fps (1920×1080, 1280×720)

Video Stream (Sub)

50Hz: 25 fps (640×480, 640×360)60Hz: 30 fps (640×480, 640×360)

Network Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users (Administrator / Operator / User)

Client Software

iVMS-4200, Hik-Connect

Web Browser

IE 10+ (plugin required), Chrome 57+, Firefox 52+ (plugin free)

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance (via client software/browser)

Day/Night Switch

Day, Night, Auto, Schedule

WDR

Digital WDR

Image Enhancement

BLC, 3D DNR

Ethernet Interface

RJ45 10/100 Mbps, self-adaptive

Event Detection

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP, notify surveillance center, send email

Power Supply

12 VDC ±25%, 0.4 A, max 5 W; PoE 802.3af, Class 3, 36–57 V, max 6.5 W

Dimensions

Ø111 × 82.4 mm

Package Dimensions

134 × 134 × 108 mm

Weight

410 g (net), 610 g (with package)

Storage Conditions

-30°C to 60°C, humidity ≤95%

Operating Conditions

-30°C to 60°C, humidity ≤95%

General Functions

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval / Certification

FCC, CE-EMC, RCM, IC VoC, KC, UL, CB, CE-LVD, RoHS, WEEE, REACH

Protection

IP67, IK10
