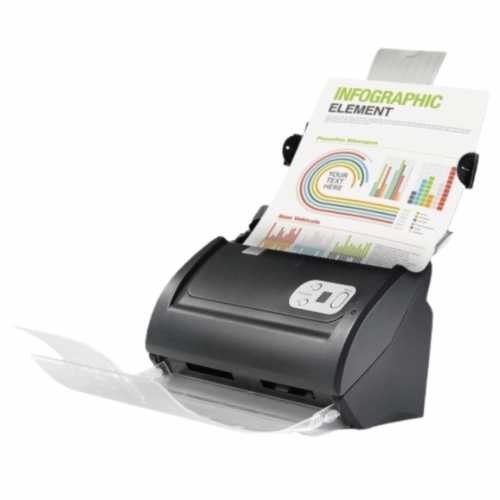

PLUSTEK SMARTOFFICE PS186 - SCANNER OTOMATIS + ADF

Image Sensor

CIS x 2 (Duplex Scanner)

Light Source

LED

Optical Resolution

600 dpi

Interpolated Resolution

1200 dpi

Hardware Resolution

600 x 600 dpi

ADF Capacity

1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF )

25 ppm/ 50 ipm (Grayscale mode, 200 dpi, A4 Portrait)
25 ppm/ 50 ipm (B&W mode, 200 dpi, A4 Portrait)
8 ppm/ 8 ipm (Color mode, 200 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.

Scanning Area (W x L)

Max: 216 x 2500 mm (8.5” x 98.42”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)

Acceptable Paper Sizes (W x L)

Max: 220 x 2500 mm (8.66” x 98.42”)
Min: 50.8 x 50.8 mm (2” x 2”)

Acceptable Paper Weight (Thickness)

50 to 105 g/㎡ (14 to 28 Lbs)

Daily Duty Scan ( Sheets )

1500

Roller Lifetime (Scans)

100000

Pad Lifetime (Scans)

20000

Action Button

3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable.

Power Supply

24 Vdc/ 0.75 A

Interface

USB 2.0

Net Weight

1.66 Kgs | 3.66 Lbs

Dimensions (W x D x H)

263 x 127.5 x 148 mm | 10.36" x 5.02" x 5.83"

Protocol

TWAIN Compliant

Operating System

Windows 7 / 8 / 10 / 11

Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info.

Hardware Requirements

2.0 GHz CPU processor or higher[1]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater

Bundled Software

Plustek DocAction II
Plustek DocTWAIN

Built-in OCR

Plustek OCR
