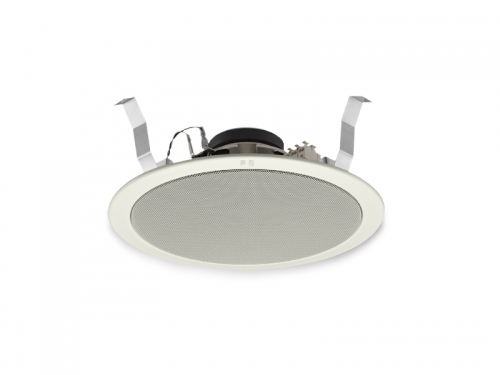

TOA CEILING MOUNT SPEAKER 6W 8 INCH 2-WAY - ZS-2852

Rated Input

15 W (100 V, 70 V line)

Rated Impedance

100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W),
3.3 kΩ (1.5 W)

Sensitivity

96 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)

Frequency Response

45 Hz - 20 kHz (peak -20 dB)

Speaker Component

20 cm (8") coaxial cone-type

Dimensions for Fixing Hole

Mounting hole: φ250±3 mm (φ9.84"±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")

Speaker Mounting Method

Spring clamp

Applicable Cable

600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)

Connection

Push-in connector (bridging terminal-2 branch type)

Finish

Baffle: Steel plate, white (RAL 9016 equivalent), paint
Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint

Dimensions

φ280 × 92 (D) mm (φ11.02" × 3.62")

Weight

1.6 kg (3.53 lb)
