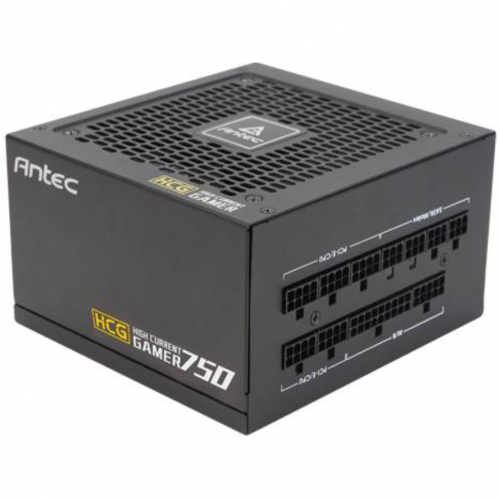

ANTEC HIGH CURRENT GAMER 750W - HCG750 GOLD - 80+ GOLD CERTIFIED - FULLY MODULAR - 10 YEARS WARRANTY

Product Name

HCG750 Gold

Model Name

HCG750 Gold

Type

ATX 12V 2.4

Modular

Fully Modular

Dimension (W x L x H)

140(L)*150(W)*86(H) mm

Warranty

10 years

Input Voltage

100-240 VAC ±10%

Input Current

10A-5A

Input Frequency Range

50Hz-60Hz

PFC

Active PFC (>0.9 typical)

Power Good Signal

100-500ms

Efficiency

92% Typically

Protection

OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO

Output Capacity

750W

Operation Temperature

0~40°C

Regulatory

cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC

Fan

120mm FDB Fan

Certifications

80 Plus Gold

Connector

1 x MB 24(20+4) Pin

2 x 8(4+4) Pin EPS 12V

4 x 8(6+2) Pin PCI-E

8 x SATA

3 x Molex

1 x FDD

Net Weight

2.11Kg

Gross Weight

3.42Kg

UPC#

0-761345-11641-1 HCG750 Gold

0-761345-11639-8 HCG750 Gold AU

0-761345-11638-1 HCG750 Gold EC

0-761345-11637-4 HCG750 Gold GB

0-761345-11636-7 HCG750 Gold JP
