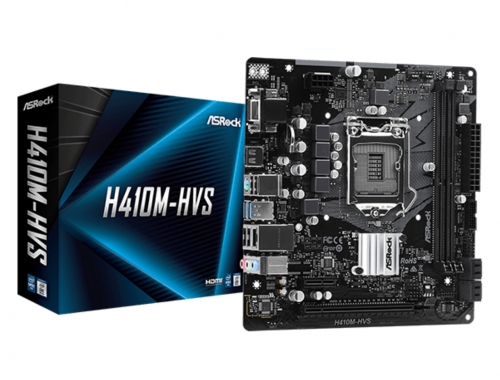

ASROCK H410M-HVS (LGA1200, H410, DDR4, USB3.2, SATA3)
- SKU: ASRMB1200002X
- CATEGORY: Motherboard intel lga 1200
- Merk: ASROCK
Model
| Brand | ASRock |
|---|---|
| Model | H410M-HVS |
Supported CPU
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Core i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200) |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipsets
| Chipset | Intel H410 |
|---|
Onboard Video
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Memory
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2933 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
Storage Devices
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|
Onboard Audio
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors
| Onboard USB | 2 x USB 3.2 + 2 x USB 2.0 |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
Physical Spec
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 7.8" x 7.4" |
| Power Pin | 24 Pin |
