ASROCK B460M-HDV (LGA1200, B460, DDR4, USB3.2, SATA3)

( 0 Reviews )

Rp. 0

SKU: ASRMB1200014X
CATEGORY: Motherboard intel lga 1200
Merk: ASROCK

Pesan Email

Tersedia Di marketplace

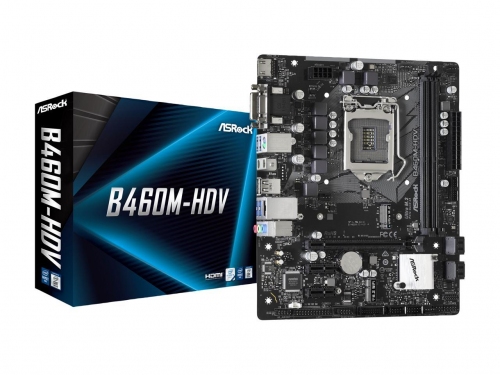

ASRock B460M-HDV (LGA1200, B460, DDR4, USB3.2, SATA3)

Model

Brand	ASRock
Model	B460M-HDV

Supported CPU

CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU Technologies	Turbo Boost Technology 3.0

Chipsets

Chipset	Intel B460

Onboard Video

Onboard Video Chipset	Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS.

Onboard Video Chipset

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** VP9 10bit and VC-1 are for decode only.
** VP8 and VP9 encode are not supported by Windows OS.

Memory

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported	64GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

Expansion Slots

PCI Express 3.0 x16	1 x PCI Express 3.0 x16 Slot* * Supports NVMe SSD as boot disks
PCI Express x1	2 x PCI Express 3.0 x1 Slots
Other Slots	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Storage Devices

SATA 6Gb/s	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2	1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
Intel Optane Ready	Yes
SATA RAID	RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17

Onboard Audio

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps

Rear Panel Ports

Back I/O Ports	1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x Print Port Header 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Other Connectors

1 x Print Port Header
1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*** CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec

Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.4"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector
