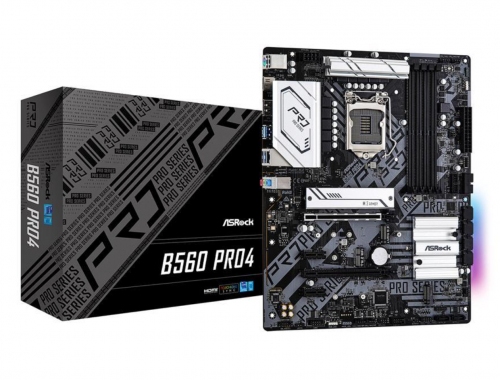

ASROCK B560 PRO4 (LGA1200, B560, DDR4, USB3.2, SATA3)
Rp. 0
- SKU: ASRMB1200024X
- CATEGORY: Motherboard intel lga 1200
- Merk: ASROCK
Tersedia Di marketplace
ASRock B560 Pro4
Model
| Brand | ASRock |
|---|---|
| Model | B560 Pro4 |
Supported CPU
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors |
Chipsets
| Chipset | Intel B560 |
|---|
Onboard Video
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Memory
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4800+(OC) (11th Gen Intel Core Processors)* DDR4 4600+(OC) (10th Gen Intel Core Processors)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 2933 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively. * 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. * Supports NVMe SSD as boot disks. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Supports NVMe SSD as boot disks. |
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
Storage Devices
| SATA 6Gb/s | 6 x SATA 6Gb/s * If M2_3 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)* * Supports Intel Optane Technology (M2_2). * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| Intel Optane Ready | Yes |
Onboard Audio
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
Rear Panel Ports
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector * Support in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |
Physical Spec
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) |
Windows Compatibility
| Windows 11 | Supported |
|---|
