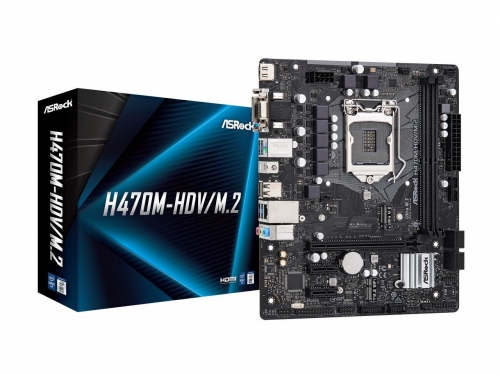

ASROCK H470M-HDV/M.2 (LGA1200, H470, DDR4, USB3.2, SATA3)
- SKU: ASRMB1200034X
- CATEGORY: Motherboard intel lga 1200
- Merk: ASROCK
| Model | ||
| Brand | ASRock | |
| Model | H470M-HDV/M.2 | |
| Supported CPU | ||
| CPU Socket Type | LGA 1200 | |
| CPU Type | Supports 10th Gen Intel Core Processors | |
| Supported CPU Technologies | Turbo Boost Technology 3.0 | |
| Chipsets | ||
| Chipset | Intel H470 | |
| Onboard Video | ||
| Onboard Video Chipset | Supported only by CPU with integrated graphic | |
| Memory | ||
| Number of Memory Slots | 2x288pin (DDR4) | |
| Memory Standard | DDR4 2933 / 2800 / 2666 / 2400 / 2133* | |
| * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. | ||
| * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) | ||
| Maximum Memory Supported | 64GB | |
| Channel Supported | Dual Channel | |
| Expansion Slots | ||
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* | |
| * Supports NVMe SSD as boot disks. | ||
| PCI Express x1 | 2 x PCI Express 3.0 x1 | |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module | |
| Storage Devices | ||
| SATA 6Gb/s | 4 x SATA 6Gb/s | |
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* | |
| * Supports Intel Optane Technology. | ||
| * Supports NVMe SSD as boot disks. | ||
| * Supports ASRock U.2 Kit. | ||
| Intel Optane Ready | Yes | |
| SATA RAID | 0/1/5/10 | |
| Onboard Audio | ||
| Audio Chipset | Realtek ALC897 | |
| Audio Channels | 7.1 Channels | |
| Onboard LAN | ||
| LAN Chipset | Intel I219-V | |
| Max LAN Speed | 10/100/1000Mbps | |
| Rear Panel Ports | ||
| Back I/O Ports | 1 x Antenna Bracket | |
| 1 x PS/2 Mouse/Keyboard Port | ||
| 1 x D-Sub Port | ||
| 1 x DVI-D Port | ||
| 1 x HDMI Port | ||
| 2 x USB 2.0 Ports (Supports ESD Protection) | ||
| 4 x USB 3.2 Gen 1 Ports (Supports ESD Protection) | ||
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | ||
| HD Audio Jacks: Line in / Front Speaker / Microphone | ||
| Internal I/O Connectors | ||
| Onboard USB | 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | ||
| Other Connectors | 1 x Print Port Header | |
| 1 x COM Port Header | ||
| 1 x SPI TPM Header | ||
| 1 x Chassis Intrusion and Speaker Header | ||
| 1 x CPU Fan Connector (4-pin) | ||
| * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | ||
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | ||
| * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | ||
| 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | ||
| * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | ||
| * CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. | ||
| 1 x Front Panel Audio Connector | ||
| Physical Spec | ||
| Form Factor | Micro ATX | |
| Dimensions (W x L) | 8.9" x 7.4" | |
| Power Pin | 1 x 24-pin ATX Power Connector | |
| 1 x 8-pin 12V Power Connector | ||
| Power Pin | 1 x 24-pin ATX Power Connector | |
| 1 x 4-pin 12V Power Connector | ||
