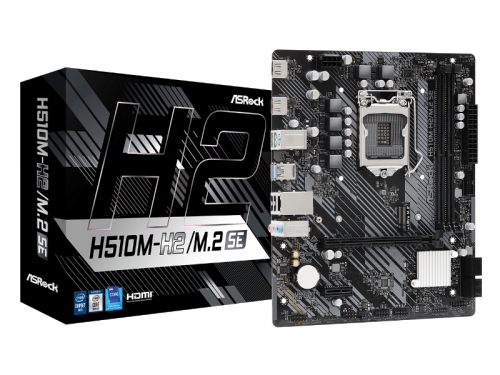

ASROCK H510M-H2/M.2 SE (LGA1200, H470, DDR4, USB3.2, SATA3)
- SKU: ASRMB1200040X
- CATEGORY: Motherboard intel lga 1200
- Merk: ASROCK
|
Unique Feature |
Rock-Solid Durability |
|
|
- 4 Power Phase |
|
|
EZ Update |
|
|
- ASRock Auto Driver Installer |
|
CPU |
- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) |
|
|
- Supports Intel® Turbo Boost Max 3.0 Technology |
|
Chipset |
- Intel® H470 |
|
Memory |
- Dual Channel DDR4 Memory Technology |
|
|
- 2 x DDR4 DIMM Slots |
|
|
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* |
|
|
- Supports ECC UDIMM memory modules (operate in non-ECC mode) |
|
|
- Max. capacity of system memory: 64GB** |
|
|
- Supports Intel® Extreme Memory Profile (XMP) 2.0 |
|
|
- 15μ Gold Contact in DIMM Slots |
|
BIOS |
- 128Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics |
- 2 x HDMI |
|
|
Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz |
|
|
Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz |
|
Audio |
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
LAN |
- Gigabit LAN 10/100/1000 Mb/s |
|
|
- Realtek 8111H |
|
Slots |
Intel® 11th Gen & 10th Gen Processors: |
|
|
- 1 x PCIe 4.0 x16 Slot (PCIE1)* |
|
|
Intel® H470 Chipset: |
|
|
- 1 x PCIe 3.0 x1 Slot (PCIE2)** |
|
Storage |
Chipset: |
|
|
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* |
|
|
- 4 x SATA3 6.0 Gb/s Connectors |
|
RAID |
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
USB |
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front) |
|
|
- 6 x USB 2.0 (2 Rear, 4 Front) |
|
Connector |
- 1 x SPI TPM Header |
|
|
- 1 x Chassis Intrusion and Speaker Header |
|
|
- 1 x CPU Fan Connector (4-pin)* |
|
|
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** |
|
|
- 1 x 24 pin ATX Power Connector |
|
|
- 1 x 8 pin 12V Power Connector |
|
|
- 1 x Front Panel Audio Connector |
|
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|
|
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
Rear Panel I/O |
- 1 x PS/2 Mouse/Keyboard Port |
|
|
- 2 x HDMI Ports |
|
|
- 2 x USB 2.0 Ports |
|
|
- 4 x USB 3.2 Gen1 Ports |
|
|
- 1 x RJ-45 LAN Port |
|
|
- HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Software and UEFI |
Software |
|
|
- ASRock Motherboard Utility (A-Tuning) |
|
|
- ASRock XFast LAN |
|
|
UEFI |
|
|
- ASRock EZ Mode |
|
|
- ASRock Full HD UEFI |
|
|
- ASRock My Favorites in UEFI |
|
|
- ASRock Auto Driver Installer |
|
|
- ASRock Instant Flash |
|
Accessories |
- 1 x User Manual |
|
|
- 1 x I/O Shield |
|
|
- 2 x SATA Data Cables |
|
|
- 1 x Screw for M.2 Socket |
|
Form Factor |
- Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm |
|
OS |
- Microsoft® Windows® 10 64-bit / 11 64-bit |
|
Certifications |
- FCC, CE |
|
|
- ErP/EuP ready (ErP/EuP ready power supply is required) |
