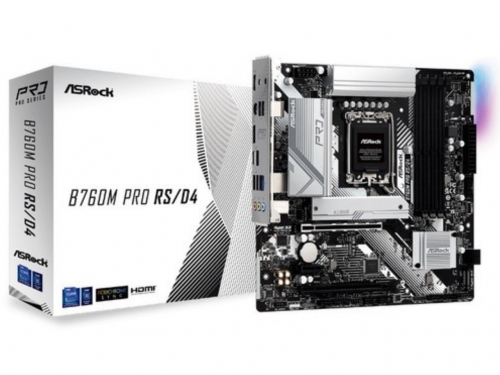

ASROCK B760M PRO RS/D4 (LGA1700, B760, DDR4, USB3.2 TYPE-C, SATA3)
Rp. 1.885.000
- SKU: ASRMB1700025X
- CATEGORY: Motherboard intel lga 1700
- Merk: ASROCK
Tersedia Di marketplace
ASRock B760M Pro RS/D4 (LGA1700, B760, DDR4, USB3.2 Type-C, SATA3)
|
CPU
|
- Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
|
| - Supports Intel® Hybrid Technology | |
| - Supports Intel® Turbo Boost Max 3.0 Technology | |
| - Supports Intel® Thermal Velocity Boost (TVB) | |
| - Supports Intel® Adaptive Boost Technology (ABT) | |
|
Chipset
|
- Intel® B760
|
|
Memory
|
- Dual Channel DDR4 Memory Technology
|
| - 4 x DDR4 DIMM Slots | |
| - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* | |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| - Max. capacity of system memory: 128GB | |
| - Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
|
*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
|
|
| 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. | |
| 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. | |
| 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. | |
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
- Intel® Xe Graphics Architecture (Gen 12)
|
| - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| - Nahimic Audio | |
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
| - Dragon RTL8125BG | |
| - Supports Dragon 2.5G LAN Software | |
| - Smart Auto Adjust Bandwidth Control | |
| - Visual User Friendly UI | |
| - Visual Network Usage Statistics | |
| - Optimized Default Setting for Game, Browser, and Streaming Modes | |
| - User Customized Priority Control | |
|
Slots
|
|
|
CPU:
|
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Chipset: | - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
| - 1 x PCIe 4.0 x1 Slot (PCIE2)* | |
| - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
| - Supports AMD CrossFire™ | |
|
Storage
|
|
|
CPU:
|
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Chipset: | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
| - 4 x SATA3 6.0 Gb/s Connectors | |
|
RAID
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
USB
|
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
|
| - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
| - 6 x USB 2.0 (2 Rear, 4 Front) | |
|
Connector
|
- 1 x SPI TPM Header
|
| - 1 x Chassis Intrusion and Speaker Header | |
| - 1 x RGB LED Header* | |
| - 3 x Addressable LED Headers** | |
| - 1 x CPU Fan Connector (4-pin)*** | |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| - 1 x 24 pin ATX Power Connector | |
| - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| - 1 x Front Panel Audio Connector | |
| - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| - 1 x Front Panel Type C USB 3.2 Gen1 Header | |
|
Rear Panel I/O
|
- 2 x Antenna Mounting Points
|
| - 1 x PS/2 Mouse/Keyboard Port | |
| - 1 x HDMI Port | |
| - 1 x DisplayPort 1.4 | |
| - 1 x USB 3.2 Gen1 Type-C Port | |
| - 3 x USB 3.2 Gen1 Type-A Ports | |
| - 2 x USB 2.0 Ports | |
| - 1 x RJ-45 LAN Port | |
| - HD Audio Jacks: Line in / Front Speaker / Microphone | |
|
Form Factor
|
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
|
|
OS
|
- Microsoft® Windows® 10 64-bit / 11 64-bit
|
|
|
*Windows® 10 only supports version 21H2 or later
|
