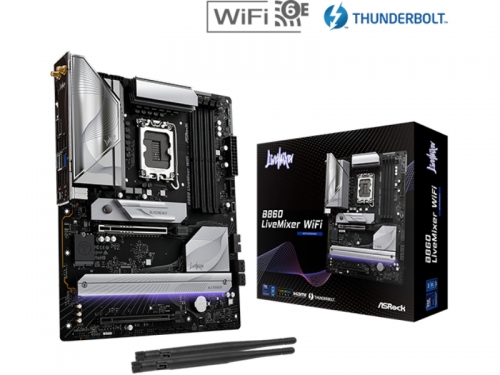

ASROCK B860 LIVEMIXER WIFI (LGA1851, B860, DDR5, USB3.2 GEN2 TYPE-C, SATA3)

Kategori

Spesifikasi

Unique Features

- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt™ 4 Type-C (40 Gb/s)

Durability

- 12+1+1+1+1 Power Phase Dr.MOS
- Enlarged Heatsink Armor
- Flexible I/O Shield
- 20K Black Caps for VCore

Connectivity

- 2.5G LAN
- Wi-Fi 6E (802.11axe)
- Bluetooth 5.3
- Dragon LAN Software, MU-MIMO

EZ Features

- BIOS Flashback Button
- Auto Driver Installer
- Post Status Checker

CPU Support

- Intel® Core™ Ultra Series 2 (LGA1851)
- Hybrid, Turbo Boost Max 3.0, TVB, ABT
- Integrated NPU for AI

Chipset

Intel® B860

Memory

- 4x DDR5 DIMM, Dual Channel
- Up to 8666+ MHz (OC) / 256GB Max
- Supports CUDIMM & XMP 3.0

Graphics

- Intel® Xe LPG
- HDMI 2.1 (4K@120Hz)
- Thunderbolt™ 4 (8K@60Hz)
- Only with iGPU-enabled CPUs

Audio

- Realtek ALC1220, 7.1 CH
- Impedance Sensing, Nahimic Audio
- Isolated PCB Layer

LAN

- 2.5G Dragon RTL8125BG
- Smart Bandwidth, UI Monitoring, Priority Control

Wi-Fi & BT

- Wi-Fi 6E (2x2), 6GHz Band (Windows 11 only)
- Bluetooth 5.3, MU-MIMO

Expansion Slots

- 1x PCIe 5.0 x16 (CPU)
- 1x PCIe 4.0 x16 (x4, Chipset)
- 1x M.2 Key E for Wi-Fi

Storage

- 1x M.2 PCIe Gen5x4 (CPU)
- 2x M.2 PCIe Gen4x4 (Chipset)
- 4x SATA 6Gb/s
- Support NVMe & Intel VMD

RAID

- RAID 0, 1, 5, 10 (SATA)

USB Ports

- Rear: 1x Thunderbolt™ 4 Type-C, 6x USB 3.2 Gen1, 6x USB 2.0
- Front: 1x USB 3.2 Gen1 Type-C, 4x USB 3.2 Gen1, 4x USB 2.0

Headers & Connectors

- RGB + 3x ARGB Headers
- 2x CPU Fan, 5x Chassis Fan, 1x AIO Pump (Smart Control)
- TPM, Thermistor, Audio, USB Headers

Rear I/O

- 1x HDMI, 1x SPDIF Out, 1x Thunderbolt™ 4
- 2x Antenna Ports
- 1x RJ45 LAN
- 6x USB 3.2 Gen1, 6x USB 2.0
- Line Out & Mic (Gold)
- BIOS Flashback Button

BIOS

- 256Mb AMI UEFI, GUI Support
- EZ Mode, Full HD UEFI, My Favorites, Instant Flash

Software

- ASRock A-Tuning
- ASRock Dragon LAN Software
- ASRock Polychrome SYNC

Accessories

- 2x SATA Cables
- 2x Wi-Fi Antennas
- 1x Thermistor Cable

Form Factor

ATX (30.5 cm x 24.4 cm)

OS Support

Microsoft Windows® 11 64-bit

Certifications

FCC, CE, ErP/EuP Ready
