Home > Motherboard amd am5 > Asrock x670e pro rs (am5, amd x670, ddr5, usb 3.2, sata3)
Call

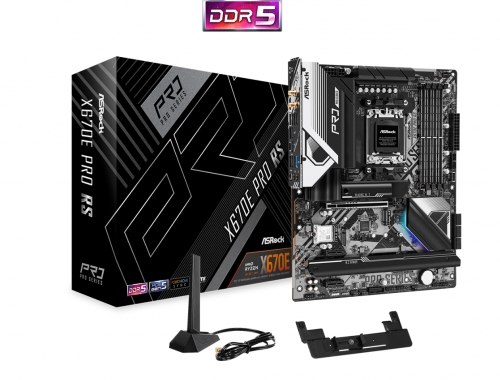

ASROCK X670E PRO RS (AM5, AMD X670, DDR5, USB 3.2, SATA3)
Rp. 4.620.000
- SKU: ASRMBAAM5003X
- CATEGORY: Motherboard amd am5
- Merk: ASROCK
Tersedia Di marketplace
ASRock X670E Pro RS
| Model | |
| Brand | ASRock |
| Model | X670E PRO RS |
| Supported CPU | |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen 7000 Series Processors |
| Chipsets | |
| Chipset | AMD X670E |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 6600+(OC)* |
| * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16* |
| * Supports NVMe SSD as boot disks. | |
| * Actual support may vary by CPU. | |
| PCI Express x1 | 2 x PCI Express 4.0 x1* |
| * Supports NVMe SSD as boot disks. | |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | CPU: |
| - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| - 1 x M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* | |
| - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| * Supports NVMe SSD as boot disks. | |
| * Supports ASRock U.2 Kit. | |
| SATA RAID | 0/1/10 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Dragon RTL8125BG |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| Supports IEEE 802.11 a/b/g/n/ac/ax | |
| Bluetooth | Yes |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Ports |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x Optical SPDIF Out Port | |
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| 4 x USB 3.2 Gen1 Ports | |
| 4 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x BIOS Flashback Button | |
| 1 x Line Out Jack (Gold Audio Jack) | |
| 1 x Microphone Input Jack (Gold Audio Jack) | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| Other Connectors | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header* | |
| 3 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| 1 x Front Panel Audio Connector | |
| * Supports in total up to 12V/3A, 36W LED Strip. | |
| ** Support in total up to 5V/3A, 15W LED Strip. | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
