Home  >  Motherboard amd swrx8   >  Asrock wrx80 creator (socket swrx8, wrx80, e-atx)
Call

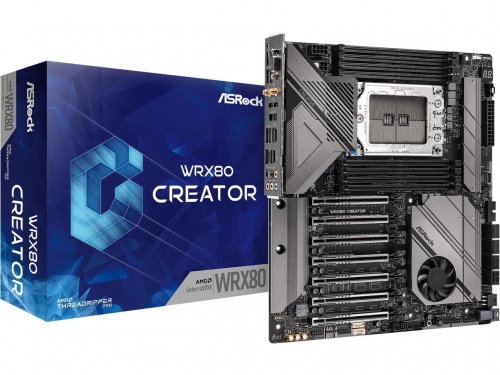

ASROCK WRX80 CREATOR (SOCKET SWRX8, WRX80, E-ATX)

( 0 Reviews )
Rp. 0
Pesan Email

Tersedia Di marketplace


Add to Wishlist
Asrock WRX80 Creator (Socket sWRX8, WRX80, E-ATX)
Model
Brand ASRock
Model WRX80 CREATOR
Supported CPU
CPU Socket Type  sWRX8
CPU Type Supports AMD Ryzen Threadripper PRO 5000WX / 3000WX Series Processors
Chipsets
Chipset  AMD WRX80
Memory
Number of Memory Slots 8x288pin (DDR4)
Memory Standard Supports DDR4 4533+(OC)*
Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 *

* Supports DDR4 3200 natively.
Maximum Memory Supported 2TB
Channel Supported  Eight Channel
ECC Supported ECC & non-ECC
Registered Yes
Buffer Supported Buffered and un-buffered
Expansion Slots
PCI Express 4.0 x16 7 x PCI Express 4.0 x16*

* PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8.
* Supports NVMe SSD as boot disks.
Other Slots 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Devices
SATA 6Gb/s  8 x SATA 6Gb/s
M.2 CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x U.2 Connector

* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek ALC4050H+ALC1220
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset 2 x Intel X710-AT2
Max LAN Speed Dual 10Gbps
Wireless LAN 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Bluetooth Yes
Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x D-Sub Port
1 x Optical SPDIF Out Port
2 x USB 4.0 Thunderbolt 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*
2 x Mini DisplayPort Input Ports (For Thunderbolt)**
4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)***
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

* Supports USB-PD 3.0 9V/3A(27W) and 5V/3A(15W).
** Please choose regular mini DisplayPort to DisplayPort adapter Cables instead of right angled ones if you use two mini DisplayPort input ports simultaneously.
*** Ultra USB Power is supported on USB31_1_2 ports.
*** ACPI wake-up function is not supported on USB31_1_2 ports.
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x COM Port Header
1 x Intelligent Platform Management Bus Header
1 x PSU SMBus Header
1 x BMC SMBus Header
1 x Auxiliary Panel Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Right Angle Front Panel Audio Connector*******
1 x Non Maskable Interrupt Button Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button

* Supports in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
****** We recommend using a PSU with a max. current of 3A on +5VSB.
******* Connect the audio device to either one of the audio connectors.
Physical Spec
Form Factor Extended ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 10.7"
Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)******
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
Windows 11 Compatibility
Windows 11 Supported
