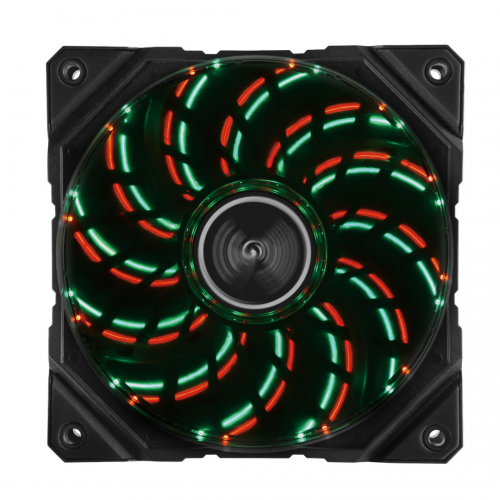

ENERMAX D.F VEGAS DUO 12CM - DUO LED (GREEN & RED) - UCDFVD12P

Model

UCDFVD12P

Fans/Model

1

Dimension (mm)

120(W) x 120(H) x 25(D)

Speed (RPM)

800 ~ 1100/1300/1500 RPM

Air Flow (CFM)

800 ~ 1100 rpm：33.21 ~ 45.33 CFM
800 ~ 1300 rpm：33.21 ~ 53.66 CFM
800 ~ 1500 rpm：33.21 ~ 61.92 CFM

Air Flow (m³/h)

800 ~ 1100 rpm：56.43 ~ 77.02 m3/h
800 ~ 1300 rpm：56.43 ~ 91.17 m3/h
800 ~ 1500 rpm：56.43 ~ 105.20 m3/h

Static Pressure (mm-H2O)

800 ~ 1100 rpm：0.979 ~ 1.297 mm-H2O
800 ~ 1300 rpm：0.979 ~ 1.425 mm-H2O
800 ~ 1500 rpm：0.979 ~ 1.898 mm-H2O

Fan Maximum Noise (dBA)

800 ~ 1100 rpm：16 ~ 18 dBA
800 ~ 1300 rpm：16 ~ 20 dBA
800 ~ 1500 rpm：16 ~ 22 dBA

Rated Voltage Fan (V)

12V

Rated Current Fan (A)

800 ~ 1100 rpm：0.21 A/
800 ~ 1300 rpm：0.23 A
800 ~ 1500 rpm：0.25 A

MTTF (hours)

≧160,000 @ 25oC

Connector

1 x 4 pin PWM connector , 1 x 4 pin fan power adaptor
