GIGABYTE H410M-H V2 (LGA1200, H470, DDR4, USB3.2, SATA3)
Rp. 935.000
- SKU: GBMB1200036
- CATEGORY: Motherboard intel lga 1200
- Merk: Gigabyte
Tersedia Di marketplace

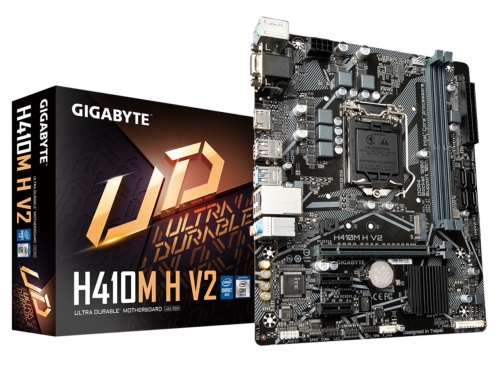

Gigabyte H410M-H V2 (LGA1200, H470, DDR4, USB3.2, SATA3)
|
CPU
|
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
|
|
L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) | |
|
Chipset
|
Intel® H470 Express Chipset |
|
Memory
|
Intel® Core™ i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
|
|
2. Intel® Core™ i5/i3/Pentium®/Celeron® processors: |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
|
|
4. Dual channel memory architecture |
| 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 7. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| Maximum shared memory of 512 MB | |
|
Audio
|
1. Realtek® Audio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
|
LAN
|
1. Intel® GbE LAN chip (1 Gbit/100 Mbit) |
|
Expansion Slots
|
1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 3.0 standard.) | |
|
|
Supports up to ASPM L1.2 power management protocols. |
|
Storage Interface
|
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| 2. 4 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| 4. Intel® Optane™ Memory Ready | |
| M.2 connectors support up to ASPM L1.2 PCIe power management protocols. | |
|
USB
|
Chipset:
|
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
|
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
|
|
3. 1 x CPU fan header |
| 4. 1 x system fan header | |
| 5. 1 x RGB LED strip header | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x USB 3.2 Gen 1 header | |
| 10. 1 x USB 2.0/1.1 header | |
| 11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 12. 1 x serial port header | |
| 13. 1 x Clear CMOS jumper | |
|
Back Panel Connectors
|
1. 1 x PS/2 keyboard/mouse port |
|
|
2. 1 x D-Sub port |
| 3. 1 x HDMI port | |
| 4. 2 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
|
I/O Controller
|
1. iTE® I/O Controller Chip |
|
Operating System
|
1. Support for Windows 10 64-bit |
|
Form Factor
|
1. Micro ATX Form Factor; 22.6cm x 18.5cm |
