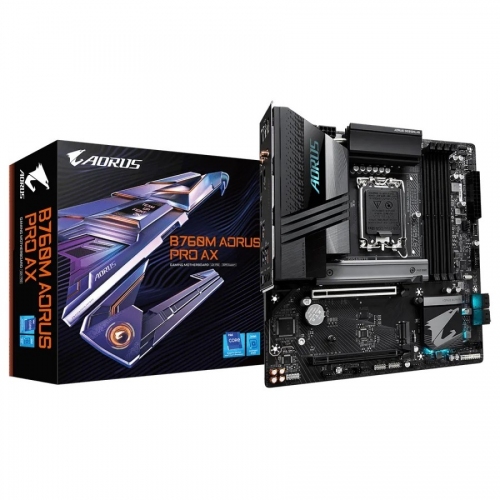

GIGABYTE B760M AORUS PRO AX (LGA1700, B760, DDR5, USB3.2 TYPE-C, SATA3)
Rp. 3.115.000
- SKU: GBMB1700029X
- CATEGORY: Motherboard intel lga 1700
- Merk: Gigabyte
Tersedia Di marketplace
Gigabyte B760M Aorus PRO AX (LGA1700, B760, DDR5, USB3.2 Type-C, SATA3)
|
CPU
|
1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
|
|
2. L3 cache varies with CPU |
| * Please refer to "CPU Support List" for more information. | |
|
Chipset
|
1. Intel® B760 Express Chipset |
|
Memory
|
1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
|
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 3. Dual channel memory architecture | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
|
Onboard Graphics
|
|
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
|
Audio
|
1. Realtek® Audio CODEC |
|
|
2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| 4. Support for S/PDIF Out | |
|
LAN
|
1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module
|
Intel® Wi-Fi 6E AX211
|
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| 2. BLUETOOTH 5.3 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| (Actual data rate may vary depending on environment and equipment.) | |
|
Expansion Slots
|
|
|
CPU:
|
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Storage Interface
|
|
|
CPU:
|
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: | 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 2. 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
|
USB
|
|
|
Chipset:
|
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| 2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 4. 1 x USB 3.2 Gen 1 port on the back panel | |
| 5. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 3.2 Gen 1 Hub: | 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+USB 2.0 Hub: | 1. 4 x USB 2.0/1.1 ports on the back panel |
|
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector |
|
|
2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x 4-pin ATX 12V power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x CPU fan/water cooling pump header | |
| 6. 3 x system fan headers | |
| 7. 1 x system fan/water cooling pump header | |
| 8. 2 x addressable LED strip headers | |
| 9. 2 x RGB LED strip headers | |
| 10. 2 x M.2 Socket 3 connectors | |
| 11. 4 x SATA 6Gb/s connectors | |
| 12. 1 x front panel header | |
| 13. 1 x front panel audio header | |
| 14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 15. 1 x USB 3.2 Gen 1 header | |
| 16. 2 x USB 2.0/1.1 headers | |
| 17. 2 x Thunderbolt™ add-in card connectors | |
| 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 19. 1 x reset button | |
| 20. 1 x Q-Flash Plus button | |
| 21. 1 x Clear CMOS button | |
| 22. 1 x reset jumper | |
|
Back Panel Connectors
|
1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
|
|
2. 1 x USB 3.2 Gen 2 Type-A port (red) |
| 3. 3 x USB 3.2 Gen 1 ports | |
| 4. 4 x USB 2.0/1.1 ports | |
| 5. 2 x SMA antenna connectors (2T2R) | |
| 6. 1 x HDMI port | |
| 7. 1 x DisplayPort | |
| 8. 1 x RJ-45 port | |
| 9. 1 x optical S/PDIF Out connector | |
| 10. 2 x audio jacks | |
|
I/O Controller
|
1. iTE® I/O Controller Chip |
|
H/W Monitoring
|
1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
|
BIOS
|
1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
|
Unique Features
|
1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 2. Support for Q-Flash | |
| 3. Support for Q-Flash Plus | |
|
Bundled Software
|
1. Norton® Internet Security (OEM version) |
|
|
2. LAN bandwidth management software |
|
Operating System
|
1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
|
Form Factor
|
1. Micro ATX Form Factor; 24.4cm x 24.4cm |
