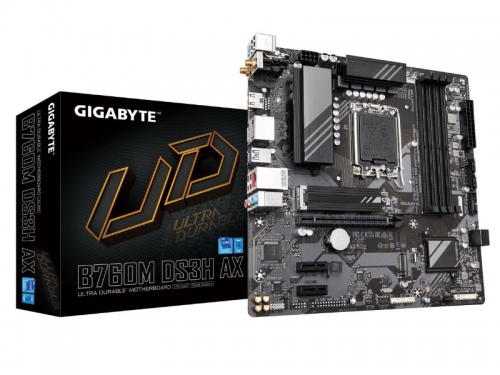

GIGABYTE B760M DS3H AX (LGA1700, B760, DDR5, USB3.2, SATA3)

( 0 Reviews )
Rp. 2.550.000
Pesan Email

Tersedia Di marketplace


Add to Wishlist
Gigabyte B760M DS3H AX (LGA1700, B760, DDR5, USB3.2, SATA3)
Model
Brand GIGABYTE
Model B760M DS3H AX
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset  Intel B760
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Memory Feature 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 CPU:
  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset  Realtek Audio CODEC
  High Definition Audio
Audio Channels  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Onboard LAN
LAN Chipset Realtek 2.5GbE LAN chip
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
Bluetooth Yes
Rear Panel Ports
Back I/O Ports 2 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  2 x SMA antenna connectors (2T2R)
  1 x HDMI port
  2 x DisplayPorts
  3 x USB 3.2 Gen 1 ports
  1 x USB Type-C port, with USB 3.2 Gen 2 support
  1 x RJ-45 port
  3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
  3 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x S/PDIF Out header
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 7.17 in x 7.17 in
Power Pin 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11 Supported
