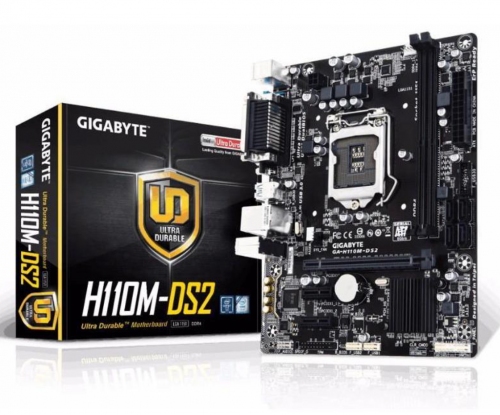

GIGABYTE GA-H110M-DS2 (LGA1151, H110, DDR4)
- SKU: GBMBIIH11000002
- CATEGORY: Motherboard intel lga 1151
- Merk: Gigabyte
| Model | |
| Brand | GIGABYTE |
| Model | GA-H110M-DS2 |
| Supported CPU | |
| CPU Socket Type | LGA 1151 |
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) |
| Chipsets | |
| Chipset | Intel H110 |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics |
| Memory | |
| Number of Memory Slots | 2 x DIMM |
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| Onboard Audio | |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 8 Channels |
| Onboard LAN | |
| LAN Chipset | Realtek |
| Max LAN Speed | 10/100/1000Mbps |
| Rear Panel Ports | |
| PS/2 | 1 x PS/2 mouse port |
| 1 x PS/2 Keyboard port | |
| COM | 1 x serial port |
| LPT | 1 x parallel port |
| Video Ports | 1 x D-Sub port |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0 / 2.0 |
| USB 1.1/2.0 | 2 x USB 2.0 / 1.1 |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.0 / 2.0 header + 2 x USB 2.0 / 1.1 headers |
| Other Connectors | 1 x 24-pin ATX main power connector |
| 1 x 4-pin ATX 12V power connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x Trusted Platform Module (TPM) header | |
| 1 x Clear CMOS jumper | |
| Physical Spec | |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 8.90" x 6.85" |
| Power Pin | 24-pin ATX main power connector |
| 4-pin ATX 12V power connector |
