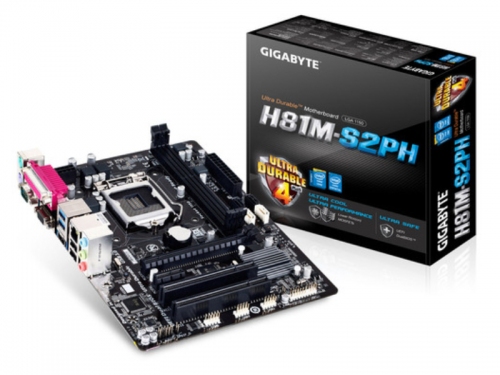

GIGABYTE GA-H81M-S2PH (LGA1150, H81, DDR3, SATA3, USB3)

Prosesor

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package

L3 cache varies with CPU

Chipset

Intel® H81 Express Chipset

Memori

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Kartu Grafis Terintegrasi

Integrated Graphics Processor - Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

* Support for HDMI 1.4a version.

Maximum shared memory of 1 GB

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Slot Tambahan

1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slot

(The PCI Express slots conform to PCI Express 2.0 standard.)

2 x PCI slots

Antarmuka Penyimpanan

Chipset:

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

USB

Chipset:

Up to 2 USB 3.0/2.0 ports on the back panel

Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Konektor I/O Internal

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

Konektor Panel Belakang

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

1 x HDMI port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

Pengontrol I/O

iTE® I/O Controller Chip

Pengawasan Hardware

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Fitur Unik

Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

@BIOS

EasyTune

EZ Setup

USB Blocker

Support for ON/OFF Charge

Paket Sofware

Norton® Internet Security (OEM version)

Sistem Operasi

Support for Windows 10/8.1/8/7

Form Factor

Micro ATX Form Factor; 24.4cm x 18.0cm
