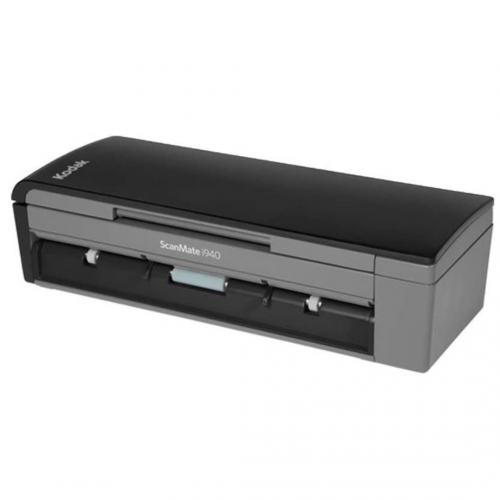

KODAK SCANMATE I940

Product Highlights

Portable, quiet, and intelligently designed to simplify and streamline your workflow with the security of USB power via USB connection

Throughput Speeds *

When AC-powered: black and white/grayscale: up to 20 ppm/40 ipm at 200 dpi; color: up to 15 ppm/30 ipm at 200 dpi
When USB-powered: black and white/grayscale/color: up to 8 ppm/16 ipm at 200 dpi

Feeder Capacity

Up to 20 sheets of 80 g/m² (20 lb.) paper

Connectivity

USB 2.0
USB 3.2 Gen 1×1 Compatible

Maximum Document Size

216 mm x 1524 mm (8.5 in. x 60 in.)

Minimum Document Size

80 mm x 52 mm (3.2 in. x 2.1 in.)

Paper Thickness & Weight

30-398 g/m² (8-220 lb.) paper
Hard card thickness up to 1.2 mm (0.047 in.)

Maximum Optical Resolution

600 dpi

Accessories & Consumables

Feed Module
Separation Module Assembly

Acoustical Noise

Scanning: <64 dB(A)

Approvals and Product Certifications

Argentina (S mark)
Australia/New Zealand (RCM)
Canada (cTUVus & ICES-003)
China (CCC)
European Union (CE)
European Union (GS Mark)
India (BIS)
Japan (VCCI)
Mexico (NOM)
Russia/Eurasian Economic Union (EAC)
South Korea (KC)
Taiwan (BSMI)
US (cTUVus & FCC)

Data Security

This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down.


Dimensions & Weight

Height: 78 mm (3.1 in.) with tray closed
Width: 289 mm (11.4 in.) with tray closed
Depth: 107 mm (4.2 in.) with tray closed
Weight: 1.3 kg (2.9 lb.) without power adapter

Electrical Requirements

100-240 V (International); 50-60 Hz

Environmental Certification

2008 EuP
ENERGY STAR Qualified
EPEAT Silver

File Format Outputs

BMP
JPEG
Single-page TIFF
Microsoft Excel
Microsoft Word
Multipage TIFF
PDF
Text searchable PDF
PNG
RTF

Image Output Resolution Options

Up to 1200 dpi

Operating System Compatibility

MAC OS up to v.10.13
NeoKylin-Linux-Desktop-6.0 i586 32-bit
NeoKylin-Linux-Desktop-6.0-x86_64-B045-20141201 64-bit
NeoKylin-Live-Desktop-6.0-x86_64-B060-20160822
Neokylin-NKLD-V7_U2-ZX64-REL-build54
Open SUSE 11.3 (i586) 32-bit
Open SUSE LEAP 15.1 64-bit
SUSE Linux Enterprise Desktop 12.2 64-bit
SUSE Linux Enterprise Desktop 15 SP1 for 64-bit
Ubuntu 16.04 64-bit and 32-bit
Ubuntu 18.04 64-bit
WINDOWS 10 (32- and 64-bit)
WINDOWS 7 SP1 (32-bit and 64-bit)
WINDOWS 8 (32-bit and 64-bit)
WINDOWS 8.1 (32-bit and 64-bit)
WINDOWS VISTA SP1 (32-bit and 64-bit)
WINDOWS XP SP3 (32-bit and 64-bit)

Operating Temperature / Operating Humidity

Operating Temperature 10-35° C (50-95° F)
Operating Humidity 10% – 85% RH

Operator Control Panel

1.5 inch (38 mm) 7 segment LED

Optional Software

Capture Pro Software
Info Input Solution

Paper Handling (SurePath) Features

Length Multifeed Detection

Perfect Page Image Enhancement Software

Adaptive threshold processing
Add or remove border
Autocrop
Automatic Brightness/Contrast
Automatic color balance
Automatic orientation
Brightness and contrast adjustment
Content-based blank page removal
Deskew
Dual stream scanning
Electronic color dropout
Fixed cropping
Fixed thresholding
Halftone removal
Image edge fill
Image merge
iThresholding
Lone Pixel Noise Removal
Majority rule noise removal
Orthogonal rotation
Output Compression-CCITT Group IV, JPEG, Uncompressed Output
Sharpening

Power Consumption

Recommended Daily Volume

Up to 1,000 pages per day

Recommended PC Configuration

INTEL CORE2 Duo, 2.1GHZ, 2GB RAM, USB2.0 or better

Scanning Technology

Single RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3)


Standard Software And Drivers

ISIS Drivers
KOFAX certified
LINUX (TWAIN and SANE) Drivers
MAC Drivers
TWAIN Drivers
WIA Drivers
