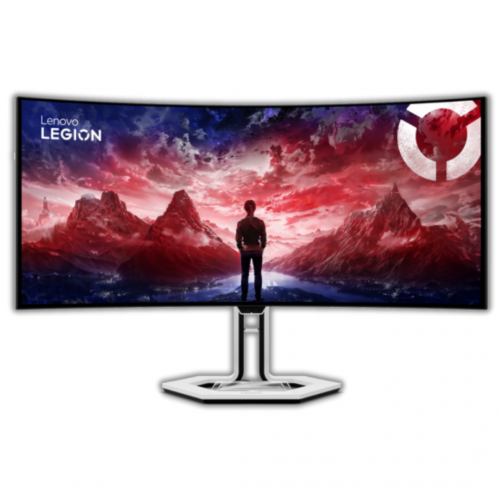

LENOVO LEGION PRO 34WD-10 34 INCH WQHD OLED 240HZ HDR400 CURVED GAMING MONITOR

Brand

Lenovo

Model

Legion™ Pro 34WD-10

Part Number

67C9UAC1WW

----- PERFORMANCE -----

Display Size

34"

View Area

795.3x332.9 mm

Panel

OLED

Resolution

3440 x 1440

Aspect Ratio

21:9

Pixel Pitch

0.2310 x 0.2310 mm

Dot / Pixel Per Inch

110 dpi

View Angle (H/V)

178° / 178°

Response Time

0.03 ms

Color Support

1.07 Billion

Refresh Rate

240Hz

Brightness

275 cd/m² (Typical, APL 100%)
450 cd/m² (Max, APL 25%)
1300 cd/m² (Peak, APL 1.5%)

Contrast Ratio

1500000:1

Color Gamut

99% sRGB
98.5% DCI-P3

Color Depth

10-bit

Screen Surface Treatment

Anti-glare

Curvature

800R

Camera

None

Microphone

None

Speakers

5Wx2

Power Consumption

- Typical : 64 W
- Maximum : 320 W

Power Adapter

Integrated

Touchscreen

None

Smart System

None

----- DESIGN -----

Stand

Supports:
-5° to +22° tilt
left & right 45 swivel
Up to 135mm lift stand

Case Color

Raven Black

Bezel Width

1.5 mm

Mounting

Supports VESA mount 100 x 100 mm

ThinkCentre M Series Support

None

Pen

None

Dimensions (W x D x H)

- Head Only : 789.6 x 177.1 x 369.3 mm (31.09 x 6.97 x 14.54 inches)
- Highest Position : 789.6 x 262.9 x 577.5 mm (31.09 x 10.35 x 22.74 inches)
- Lowest Position : 789.6 x 262.9 x 442.5 mm (31.09 x 10.35 x 17.42 inches)
- Packaging : 940.0 x 282.0 x 475.0 mm (37.00 x 11.10 x 18.70 inches)

Weight

- With Stand : 8.7 kg (19.2 lbs)
- Head Only : 6.4 kg (14.1 lbs)
- Packaging : 14.6 kg (32.3 lbs)

In the Box

Monitor with stand
1x DP cable (1.8m)
1x HDMI® cable (1.8m)
1x USB-C® to USB-C® cable (1m, 10Gbps)
1x Power cable (1.8m)
4x Screws
1x Screw driver
Factory calibration report
Quick setup guide
Warranty booklet

----- CONNECTIVITY -----

USB Port

1x USB-B (USB 5Gbps, USB upstream)
1x USB-C® (USB 5Gbps, USB upstream)
3x USB-A (USB 5Gbps, USB downstream)
2x USB-C (USB 5Gbps, downstream)

Video Connector

1x HDMI® 2.1 FRL
1x HDMI 2.1 FRL with eARC
1x DP 1.4 (HBR3)
1x USB-C® (DP 1.4 Alt Mode HBR3)

Network Connectivity

1x RJ45
Ethernet (10M/100M/1000M/2500M)

----- SOFTWARE -----

Operating System

Windows® 11 Support
Windows® 10 Support

----- WARRANTY -----

Base Warranty

3-year

----- ACCESSORIES -----

Video Cables

DP cable
USB-C® to USB-C cable
HDMI® cable

----- CERTIFICATIONS -----

Environmental Certification

RoHS
EU Energy Efficiency Level (Level-G)

Ergonomic Certification

Eyesafe® Display 2.0
TÜV Low Blue Light (Hardware solution)
TÜV Rheinland® Eye Comfort (3 Stars)
TÜV Rheinland Flicker Free

Sync Technology

AMD FreeSync™ Premium Pro
Adaptive Sync

Special Features

- DisplayHDR™ TB400
- ClearMR 13000
- Factory Calibration: Avg. Delta E<2 at sRGB
- Picture In Picture (PIP) / Picture By Picture (PBP) Support
- AMD FreeSync™ Premium Pro
AMD FreeSync technology only can work with AMD Radeon™ series graphics card.
Lenovo® Artery (Lenovo Accessories and Display Manager) Support
- Lenovo Artery supports Windows® 10 & 11, Mac OS, and Windows On Arm (functions vary across systems).
Lenovo Accessories and Display Manager is formerly Lenovo Display Control Center.
Realtek® Dragon Software.
- Adaptive Sync
- Gaming Console Support
- KVM Switch
- Natural Low Blue Light
- Smart Power
The Smart Power function intelligently detects overall power consumption and dynamically manages the power delivery to each device
- Smart Sense
Auto Ambient Brightness Sensor, Human Detection Sensor
- True Split
