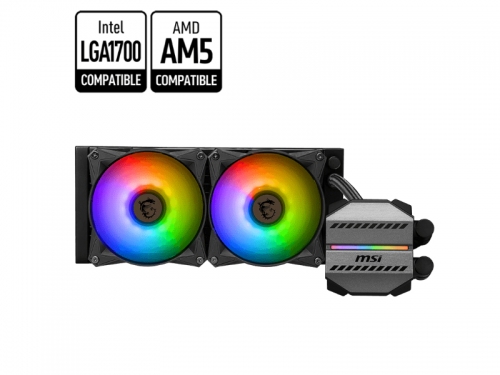

MSI MAG CORELIQUID E240 - SUPPORT LGA1700/AM5

Feature

Specification

Radiator Size

240 mm

Radiator Dimensions (WxDxH)

277 x 119.2 x 27 mm

(10.91 x 4.69 x 1.06 inches)

Radiator Material

Aluminum

Water Cooling Tube Material

Black Rubber

Number of Fans

2

Fan Dimensions (WxDxH)

120 x 120 x 25 mm

(4.7 x 4.7 x 0.98 inches)

Fan Air Flow

25.5~75.04 CFM

Fan Bearing

Fluid Dynamic Bearing (FDB)

Fan Life Expectancy

50,000 hrs@40℃

Fan Rated Current

0.25A (Max: 0.4A)

Fan Power Consumption

3W (Max: 4.8W)

PWM Mode

YES

Cable Length (PWM Cable)

500 mm

Fan Connector

4-pin

Fan Lighting

ARGB

RGB Connector

3-pin + Socket

Pump Life Expectancy

200,000 hours in typical use

Pump Noise Level

20 dBA (avg.)

Pump Rated Current

0.25A (Max: 0.5A)

Pump Power Consumption

3W (Max: 6W)

Pump Speed

3000 RPM ± 10%

Pump Connector

4-pin

Cold Plate Material

Copper

Block Dimensions (WxDxH)

41±0.2 x 47.6±0.2 mm

Intel Socket Support

LGA 1150/1151/1155/1156/1200/1700/1851

AMD Socket Support

AM5/AM4

Accessories

1 x 1 to 2 Fan PWM cable

1 x Molex 4-Pin to 4-Pin fan cable

1 x Thermal paste
