Home  >  Motherboard intel lga 1700   >  Msi meg z790 ace (lga1700, z790, ddr5, usb3.2 type-c, sata3)
Call

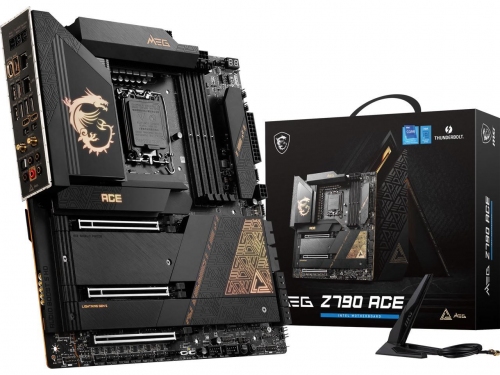

MSI MEG Z790 ACE (LGA1700, Z790, DDR5, USB3.2 TYPE-C, SATA3)

( 0 Reviews )
Rp. 11.800.000
Pesan Email

Tersedia Di marketplace


Add to Wishlist
MSI MEG Z790 ACE (LGA1700, Z790, DDR5, USB3.2 Type-C, SATA3)
Model
Model MEG Z790 ACE
Memory
Memory Standard Supports 1R 5600 MHz (by JEDEC & POR)
  - 1DPC 1R Max speed up to 7600+ MHz
  - 1DPC 2R Max speed up to 6400+ MHz
  - 2DPC 1R Max speed up to 6800+ MHz
  - 2DPC 2R Max speed up to 5600+ MHz

  Supports Intel XMP3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory
Memory Feature Supports Intel XMP3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory
  * Please refer to www.msi.com for more information on compatible memory
Expansion Slots
PCI Express 5.0 x16 2 x PCIe 5.0 x16 slots
  - Supports x16/x0, x8/x8
  - PCI_E1 & PCI_E2 slots (From CPU)

  Supports AMD CrossFire Technology
PCI Express 4.0 x16 1 x PCIe 4.0 x16 slots
  - supports up to PCIe 4.0 x4
  - PCI_E3 slot (From Z790 Chipset)
Storage Devices
M.2 2 x Key M (PCIe/SATA) + 3 x Key M (PCIe) + 1 x Key E (WiFi/BT)

  5x M.2 slots (Key M)
  M2_1 slot (From CPU)
  - Supports up to PCIe 4.0 x4
  - Supports 2260/ 2280/ 22110 storage devices
  M2_2 slot (From Z790 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports 2260/ 2280 storage devices
  M2_3 slot (From Z790 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports up to SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
  M2_4 slot (From CPU)
  - Supports up to PCIe 5.0 x4
  - Supports 2280/22110 storage devices
  M2_5 slot (From Z790 chipset)
  - Supports up to PCIe 4.0 x4
  - Supports up to SATA 6Gb/s
  - Supports 2260/ 2280 storage devices
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Additional RAID Controller Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset Realtek ALC4082 Codec + ES9280AQ PRO Combo DAC/HPA
Audio Channels 7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6E
Bluetooth Bluetooth 5.2
Rear Panel Ports
Back I/O Ports 1 x Clear CMOS button
  1 x Flash BIOS button
  1 x Smart button
  2 x LAN (RJ45) jacks
  7 x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset & Hub-GL3590)
  1 x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
  2 x Thunderbolt 4 (USB-C) ports
  2 x Mini DisplayPort Inputs (for Thunderbolt 4 pass through)
  2 x Wi-Fi Antenna connectors
  5 x OFC audio jacks
  1 x Optical S/PDIF Out connector
Internal I/O Connectors
Onboard USB 2 x USB 3.2 Gen 2 10Gbps Type-C ports (From Z790 chipset)*
  2 x USB 3.2 Gen 1 5Gbps connectors (From Hub GL3523)
  - Support additional 4 USB 3.2 Gen 1 5Gbps ports
  2 x USB 2.0 Type-A connectors (From Hub GL850G)
  - Supports additional 4 USB 2.0 ports
  * To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
Other Connectors Fan Connectors
  1 x 4-pin CPU fan connector
  2 x 4-pin water-pump fan connectors
  5 x 4-pin system fan connectors

  System Connectors
  1 x Front panel audio connector
  2 x System panel connectors
  1 x Chassis Intrusion connector
  1 x 3-pin Water Flow connector
  1 x TPM module connector
  1 x Tuning Controller connector

  Button
  1 x Power button
  1 x Reset button

  Jumpers
  1 x Clear CMOS jumper
  1 x Slow mode jumper
  2 x Low temperature booting jumpers
  1 x OC force enter BIOS jumper (Supports lower PCIe mode)

  LED Features
  1 x EZ LED Control switch
  1 x 4-pin RGB LED connector
  3 x 3-pin ARGB Gen2 LED connectors
  4 x EZ Debug LED
  1 x 2-Digit Debug Code LED
Physical Spec
Form Factor Extended ATX
Dimensions (W x L) 12.0" x 10.9"
Power Pin 1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x 6-pin PD power connector
Windows Compatibility
Windows 11 Supported
Video Product not found
