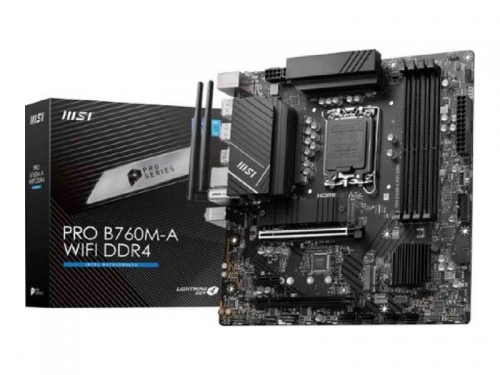

MSI PRO B760M-A WIFI DDR4 (LGA1700, B760, DDR4, USB3.2 TYPE-C, SATA3)
- SKU: MSMB1700041X
- CATEGORY: Motherboard intel lga 1700
- Merk: MSI
| Model | |
| Model | PRO B760M-A WIFI DDR4 |
| Memory | |
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Memory Feature | Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: - 1DPC 1R Max speed up to 5333+ MHz - 1DPC 2R Max speed up to 4800+ MHz - 2DPC 1R Max speed up to 4400+ MHz - 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) * Please refer to www.msi.com for more information on compatible memory |
| Expansion Slots | |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x4 | 1 x PCI Express 4.0 x4 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Storage Devices | |
| M.2 | 2 x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B760 chipset) - Supports up to PCIe 4.0 x4 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices |
| SATA RAID | 0/1/5/10 |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| Rear Panel Ports | |
| Back I/O Ports | 1 x PS/2 keyboard/Mouse combo port 2 x USB 2.0 Type-A ports (From B760 chipset) 2 x DisplayPort 2 x HDMI 2.1 ports 2 x USB 3.2 Gen 1 5Gbps Type-A ports (From B760 chipset) 1 x 2.5G LAN (RJ45) port 2 x USB 3.2 Gen 2 10Gbps Type-A ports (From B760 chipset) 2 x WiFi Antenna connectors 3 x audio jacks |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 3.2 Gen 1 5Gbps connectors (From GL3523) - Supports additional 4 USB 3.2 Gen 1 5Gbps Type-A ports 1 x USB 3.2 Gen 1 5Gbps Type-C front panel connector (From B760 chipset) 2 x USB 2.0 connectors (From B760 chipset) - Supports additional 4 USB 2.0 Type-A ports |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector |
| Physical Spec | |
| Form Factor | Micro ATX |
| LED Lighting | 1 x 4-pin RGB LED connector 2 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin +12V power connector 1 x 4-pin ATX 12V power connector |
| Windows Compatibility | |
| Windows 11 | Supported |
