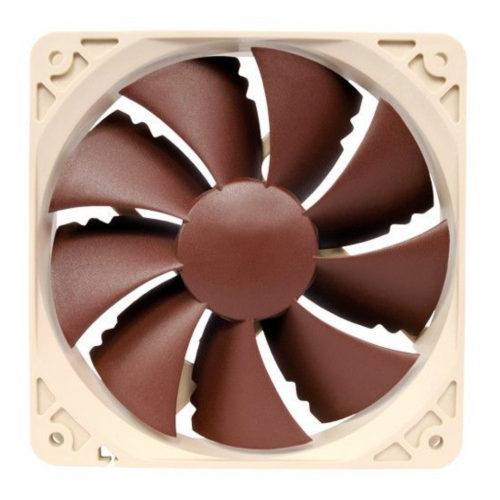

NOCTUA NF-P12 PWM 1300RPM 4-PIN FAN

Size

120×120×25 mm

Mounting hole spacing

105×105 mm

Connector & pin-configuration

4-pin PWM

Bearing

SSO-Bearing

Blade geometry

Pressure-optimized Nine Blade Design with Vortex-Control Notches

Rotational speed (±10%)

1300 RPM

Rotational speed with L.N.A. (±10%)

900 RPM

Min. rotational speed @20% PWM (±20%)

300 RPM

Airflow

92.3 m³/h

Airflow with L.N.A.

63.4 m³/h

Acoustical noise

19.8 dB(A)

Acoustical noise with L.N.A.

12.6 dB(A)

Static pressure

1.68 mm H₂O

Static pressure with L.N.A.

1.21 mm H₂O

Input power (max.)

0.6 W

Max. input current

0.05 A

Operating voltage

12 V

MTTF

>150,000 h

Scope of delivery

• Low-Noise Adapter (L.N.A.)
• 4-Pin Y-Cable
• 30 cm Extension Cable
• 4 Vibration-Compensators
• 4 Fan Screws
