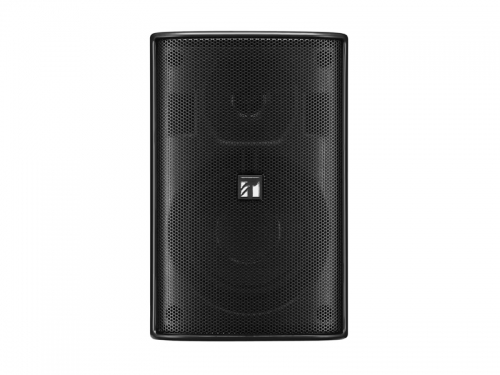

TOA F-SERIES BOX SPEAKER - ZS-F1000B

Model Number

ZS-F1000B

Unit

1unit

Sensitivity (dB)

87 (1 W, 1 m) at installation in 1/2 free sound field

Accessories

Speaker bracket x1, Joint bracket x1, Wall bracket x1, Bracket fixing screw x1 set

Enclosure

Bass Reflex Type

Crossover Frequency (kHz)

5

Directivity Angle (°)

Horizontal: 90, Vertical: 90

Input Terminal

Push-in terminal

Option

Board hanger bracket: ZY-BH10B; Ceiling mount bracket: ZY-CM10B (used for the horizontal speaker mounting); Cluster bracket: ZY-CL10B; Speaker stand: ST-16A

Rated Impedance (Ω)

8

Frequency Response (Hz)

85-20000, -10 dB at installation in 1/2 free sound field

Speaker Component

Low frequency: 10cm (4") cone-type; High frequency: Balanced dome tweeter

Finish

Enclosure: HIPS, black; Punched net: Surface-treated steel plate, black, paint; Joint bracket, wall bracket: Steel plate, t1.6, black, paint; Speaker bracket: Die-cast aluminum, black, paint

Dimension (WxHxD) (mm)

130x202x131

Power Handling Capacity (W)

Continuous pink noise: 30; Continuous program: 90
