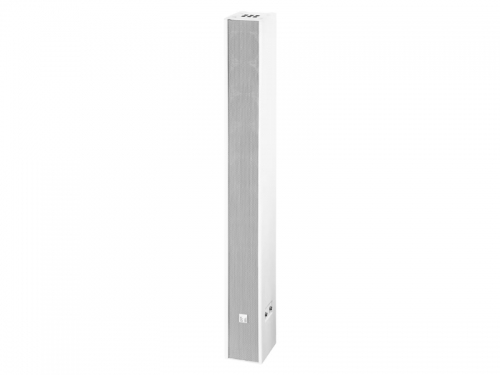

TOA SLIM ARRAY SPEAKER WHITE - ZS-S60CW

Model Number

ZS-S60CW

Unit

1unit

Sensitivity (dB)

95 (1 W, 1 m)

Accessories

Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 15) (with plain washer and spring washer) x 4

Enclosure

Bass Reflex Type

Directivity Angle (°)

Horizontal: 90, Vertical: 0

Operating Temperature (°C)

-60

Option

ZY-S60W: Side Stack Bracket x 2, Rear Stack Bracket x 1

Rated Impedance (Ω)

Low Impedance: 8; 100 V line: 167 (60 W), 330 (30 W), 500 (20 W), 1000 (10 W): Selectable

Connection

Push-In Terminals

Max. Input Power (Low Impedance) (W)

120 (Continuous pink noise)

Rated Input (High Impedance) (W)

60

Impedance Change

Rotary Switch (Selectable)

Frequency Response (Hz)

180-15000

Speaker Component

8cm (3") cone-type x 9

Finish

Enclosure: MDF, Wet Paint, White; Punched Net: SECC, Wet Paint, White; Wall Bracket: SECC, Wet Paint, White; Side Panel: SECC, Wet Paint, White; Metal Cover: SECC, Wet Paint, White
