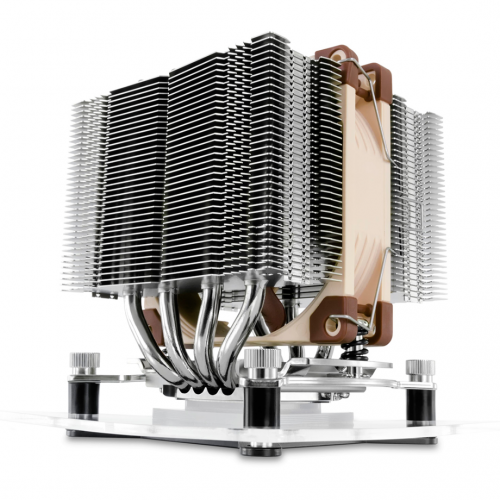

NOCTUA NH-D9L CPU COOLER

Socket Compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

Height (without fan)

110 mm

Width (without fan)

95 mm

Depth (without fan)

95 mm

Height (with fan)

110 mm

Width (with fan)

95 mm

Depth (with fan)

95 mm

Weight (with fan)

531 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

88

Max. TDP

See NSPR

Fan Compatibility

92x92x25

Scope of Delivery

- NF-A9 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Fan-clips for second NF-A9
- Noctua Metal Case-Badge

Warranty

6 Years

FAN Specification

Model

Noctua NF-A9 PWM

Bearing

SSO2

Max. Rotational Speed (+/- 10%)

2000 RPM

Max. Rotational Speed with L.N.A. (+/- 10%)

1550 RPM

Min. Rotational Speed @ 20% PWM (+/-20%)

400 RPM

Max. Airflow

78,9 m³/h

Max. Airflow with L.N.A.

62,6 m³/h

Max. Acoustical Noise

22,8 dB(A)

Max. Acoustical Noise with L.N.A.

16,3 dB(A)

Input Power (max.)

1,2 W

Voltage Range

12 V

MTTF

> 150.000 h
