ASROCK B560M-ITX/AC (LGA1200, B560, DDR4, USB3.2, SATA3)
Rp. 1.655.000
- SKU: ASRMB1200033X
- CATEGORY: Motherboard intel lga 1200
- Merk: ASROCK
Tersedia Di marketplace

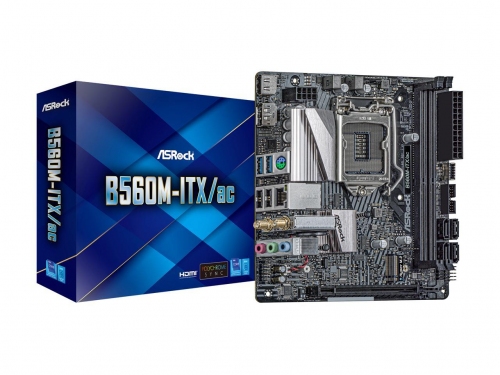

ASRock B560M-ITX/ac (LGA1200, B560, DDR4, USB3.2, SATA3)
Model
| Brand | ASRock |
|---|---|
| Model | B560M-ITX/AC |
Supported CPU
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipsets
| Chipset | Intel B560 |
|---|
Onboard Video
| Onboard Video Chipset | 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports** * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4. |
|---|
Memory
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4400+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. |
| Maximum Memory Supported | 64GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express 4.0 x16 | 11th Gen Intel Core Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel Core Processors - 1 x PCI Express 3.0 x16 Slot* * Supports NVMe SSD as boot disks |
|---|---|
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) |
Storage Devices
| SATA 6Gb/s | 4 x SATA3 6.0Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with 11th Gen Intel Core Processors) or Gen3 x4 (32Gb/s) (with 10th Gen Intel Core Processors)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
Onboard Audio
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
Onboard LAN
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Intel 802.11ac WiFi Module Supports IEEE 802.11a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433Mbps |
| Bluetooth | Supports Bluetooth 4.2 / 3.0 + High speed class II |
Rear Panel Ports
| Back I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
Internal I/O Connectors
| Onboard USB | 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x Chassis Intrusion Header 1 x Addressable LED Header* 1 x CPU Fan Connector (4-pin)** 1 x Chassis Fan Connector (4-pin)*** 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 1 x Front Panel Audio Connector |
